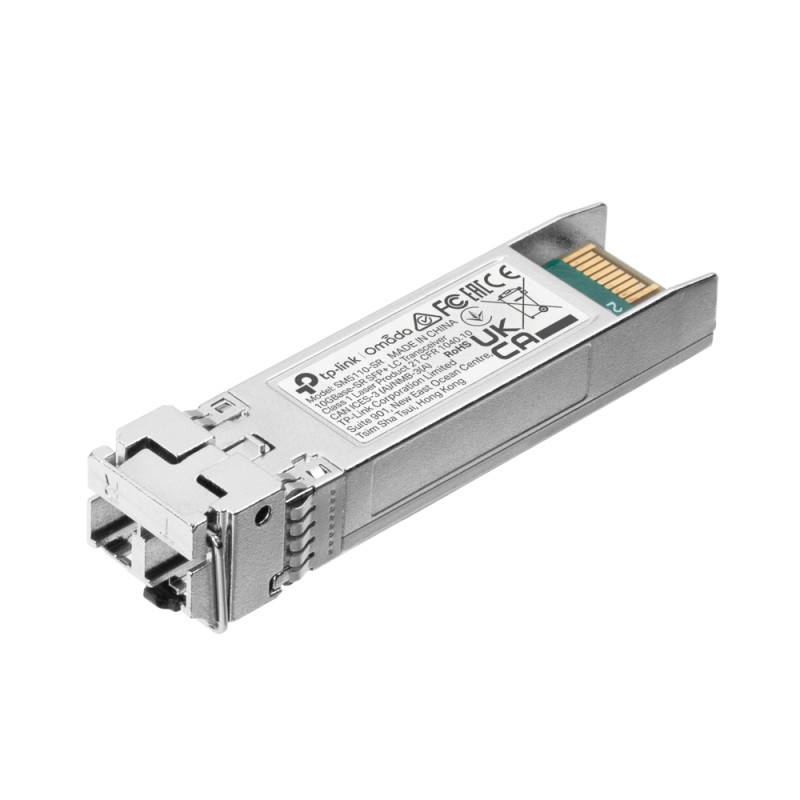

TP-Link Omada 10GBase-SR SFP+ LC Transceiver
  • TP-Link Omada 10GBase-SR SFP+ LC Transceiver
  • TP-Link Omada 10GBase-SR SFP+ LC Transceiver
The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
CertificationFCC, CE
Depth14.5 mm
Fiber optic connectorLC (UPC)
Height12.2 mm
Hot-swapY
Input voltage3.3 V
Interface typeSFP+
Maximum data transfer rate10000 Mbit/s
Maximum operating temperature70 °C
Maximum transfer distance300 m
Number of products included1 pc(s)
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 70 °C
SFP transceiver typefiber optic
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 80 °C
Wavelength850 nm
Width61.3 mm
Digital Diagnostics Monitoring (DDM)Y
Multi-mode fiber (MMF) supportedY
Product colourSilver
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm

sm5110-sr.pdf

TP-Link Omada 10GBase-SR SFP+ LC Transceiver Data Sheet

Download (160.71k)

Similar products

  • TP-LINK TL-SM311LM
    TP-LINK TL-SM311LM
  • TP-LINK PoE Splitter
    TP-LINK PoE Splitter
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS
  • TP-LINK PoE Injector
    TP-LINK PoE Injector
  • TP-LINK 1000base-BX WDM SFP Module
    TP-LINK 1000base-BX WDM SFP Module

TP-Link Omada 10GBase-SR SFP+ LC Transceiver

10GBase-SR, SFP+, LC, 850nm, 61.3x14.5x12.2 mm

sm5110-sr

In Stock

£35.62
£29.69 Ex VAT.
