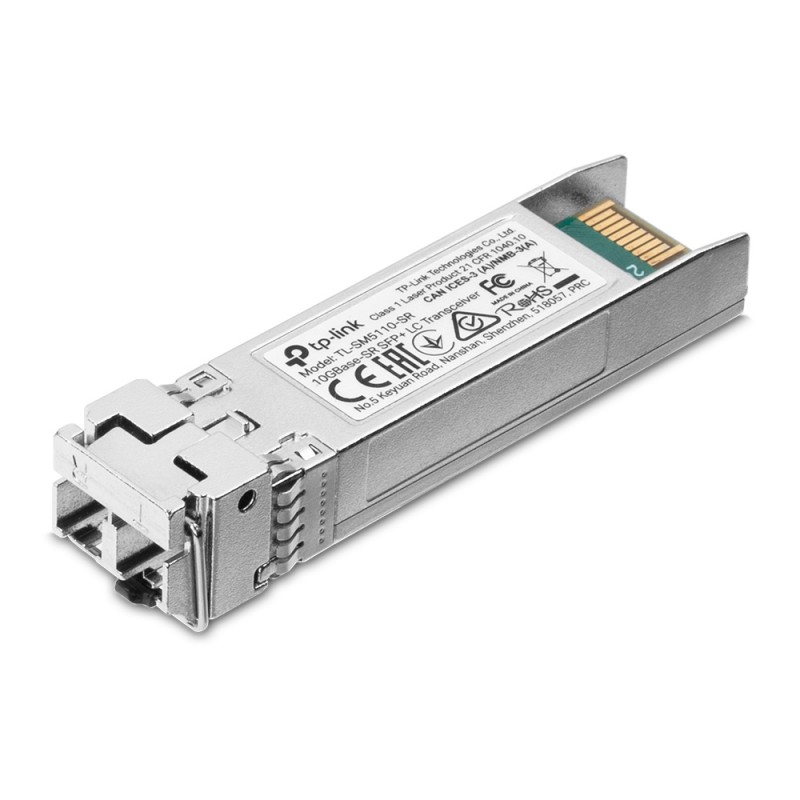

TP-Link 10GBase-SR SFP+ LC Transceiver
  • TP-Link 10GBase-SR SFP+ LC Transceiver
  • TP-Link 10GBase-SR SFP+ LC Transceiver
  • TP-Link 10GBase-SR SFP+ LC Transceiver
  • TP-Link 10GBase-SR SFP+ LC Transceiver
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
CertificationFCC, CE
Fiber optic connectorLC (UPC)
Hot-swapY
Input voltage3.3 V
Interface typeSFP+
Maximum data transfer rate10000 Mbit/s
Maximum transfer distance300 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 70 °C
SFP transceiver typefiber optic
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 80 °C
Wavelength850 nm
Digital Diagnostics Monitoring (DDM)Y
Multi-mode fiber (MMF) supportedY
Product colourSilver
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Harmonized System (HS) code85369010

tl-sm5110-sr.pdf

TP-Link 10GBase-SR SFP+ LC Transceiver Data Sheet

Download (2.33M)
