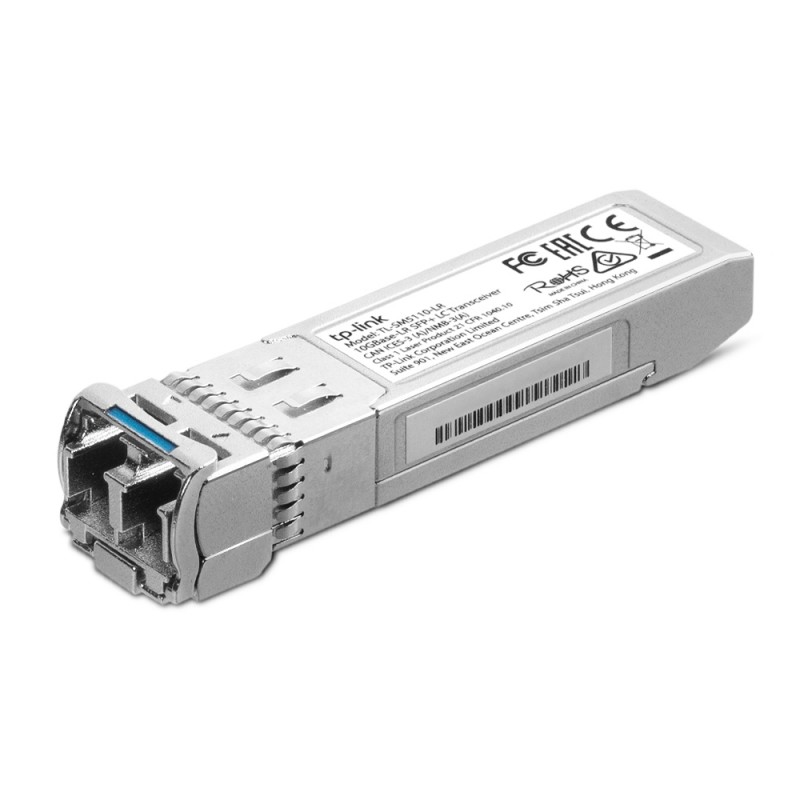

TP-Link 10GBase-LR SFP+ LC Transceiver
  • TP-Link 10GBase-LR SFP+ LC Transceiver
  • TP-Link 10GBase-LR SFP+ LC Transceiver
  • TP-Link 10GBase-LR SFP+ LC Transceiver
  • TP-Link 10GBase-LR SFP+ LC Transceiver
  • TP-Link 10GBase-LR SFP+ LC Transceiver
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Brand compatibilityTP-Link
CertificationFCC, CE
Compatible productsSwitches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Fiber optic connectorLC
Hot-Plug supportY
Input voltage3.3 V
Interface typeSFP+
Maximum data transfer rate10000 Mbit/s
Maximum transfer distance10000 m
Networking standardsIEEE 802.3ae
Number of products included1 pc(s)
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 70 °C
SFP transceiver typefiber optic
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 85 °C
Wavelength1310 nm
Digital Diagnostics Monitoring (DDM)Y
Single-mode fiber (SMF) supportedY
Multi-mode fiber (MMF) supportedN
Fiber cable diameters supported (core/cladding)9/125 µm
Harmonized System (HS) code85369010
SFP transceiver standardLR

tl-sm5110-lr.pdf

TP-Link 10GBase-LR SFP+ LC Transceiver Data Sheet

Download (199.92k)
