TP-Link´s SM321A(TL-SM321A) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
| Certification | FCC, CE |
| Depth | 14.6 mm |
| Height | 12.9 mm |
| Hot-swap | Y |
| Input voltage | 3.3 V |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Maximum operating temperature | 70 °C |
| Maximum transfer distance | 20000 m |
| Number of products included | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 70 °C |
| SFP transceiver type | fiber optic |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 85 °C |
| User guide | Y |
| Width | 55.4 mm |
| Digital Diagnostics Monitoring (DDM) | Y |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Single-mode fiber (SMF) supported | Y |
| Product colour | Silver |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
Similar products
-
TP-LINK TL-SM311LM
-
TP-LINK PoE Splitter
-
TP-LINK TL-SM311LS
-
TP-LINK PoE Injector
-
TP-LINK 1000base-BX WDM SFP Module

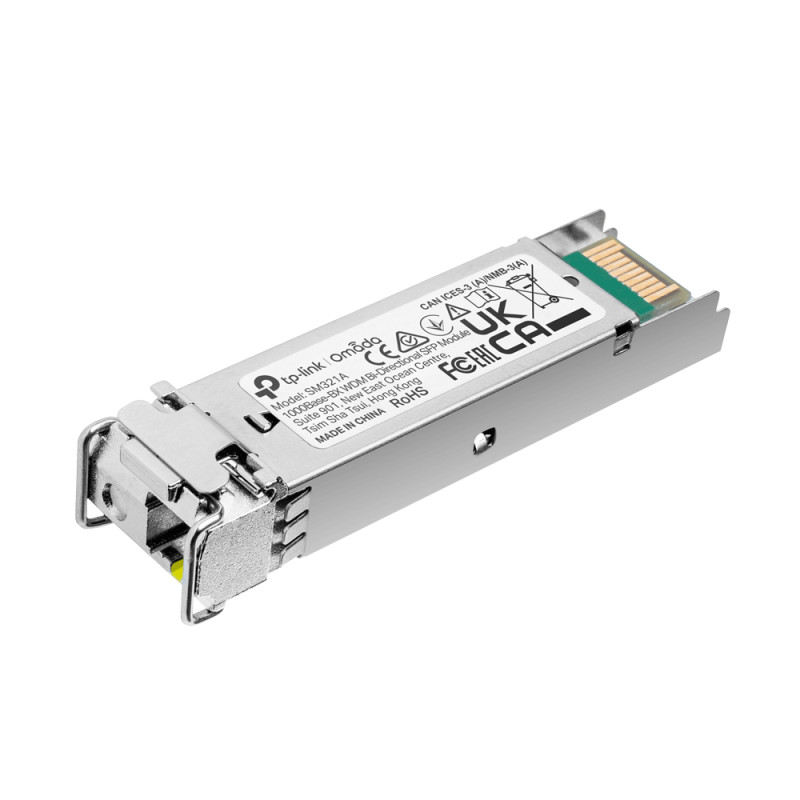

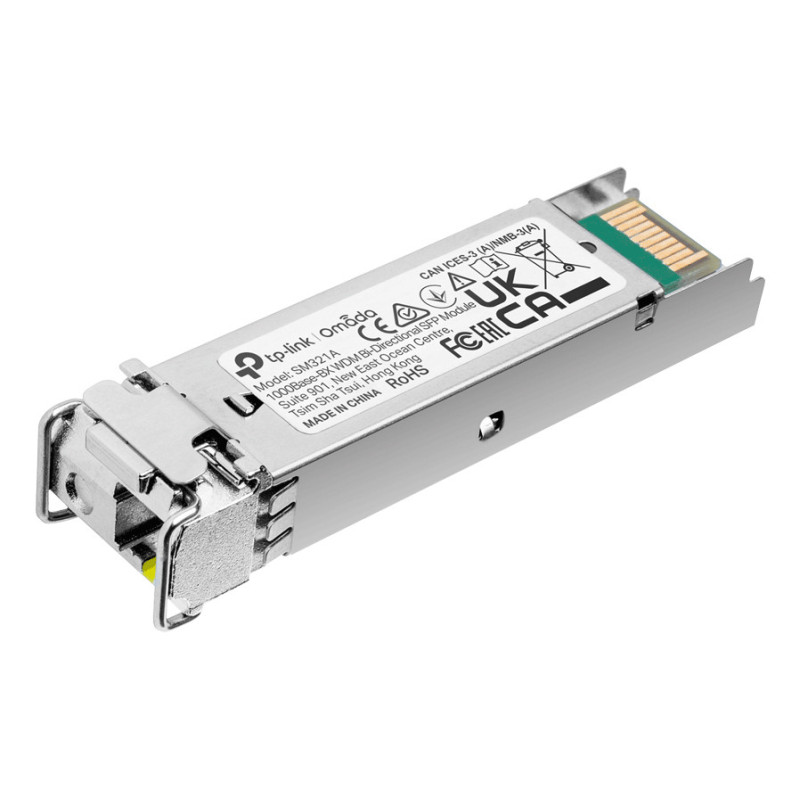

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module
1.25 Gbps, 20 km max, LC, 55.4x14.6x12.9 mm
sm321a
Out of Stock
£31.23
£26.03 Ex VAT.
