The Allied Telesis CentreCOM® GS970M/28 Layer 3 managed switch features twenty-four 10/100/1000T Gigabit Ethernet ports and four 100/1000X SFP ports for secure connectivity at the network edge.
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Certification | FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A |
| Colour of product | Grey |
| Combo SFP ports quantity | 4 |
| Compatible memory cards | SD,SDHC |
| Console port | RS-232 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
| Country of origin | China |
| Depth | 231 mm |
| DHCP client | Y |
| Fiber ethernet cabling technology | 100Base-X,1000Base-X |
| Fiber optic connector | SFP |
| Flash memory | 64 MB |
| Flow control support | Y |
| Form factor | 1U |
| Forwarding rate | 41.7 Mpps |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Heat dissipation | 89 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| Input current | 2.4 A |
| Internal memory | 512 MB |
| Jumbo frames support | Y |
| Latency (1 Gbps) | 4.3 µs |
| Latency (10-100 Mbps) | 8.6 µs |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address filtering | Y |
| MAC address table | 16000 entries |
| Memory type | DDR SDRAM |
| MIB support | SNMP MIB |
| Multicast support | Y |
| Networking standards | IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Noise level | 34 dB |
| Non-operating altitude | 0 - 4000 m |
| Number of VLANs | 4094 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4000 g |
| Package width | 430 mm |
| Password protection | Y |
| Port mirroring | Y |
| Power consumption (max) | 26 W |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Routing protocols | RIP,RIP-2 |
| Safety | EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1 |
| Security algorithms | 3DES,AES,MD5,PEAP,RSA,SHA-1,SHA-2,SSH,SSH-2,SSL/TLS,TTLS |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Y |
| VLAN support | Y |
| Wall mountable | Y |
| Web-based management | Y |
| Weight | 2400 g |
| Width | 341 mm |
| ARP inspection | Y |
| Jumbo frames | 10000 |
| Private VLAN | Y |
| BPDU filtering/protection | Y |
| Port-based VLAN | Y |
| Protocol-based VLAN | Y |
| Loop protection | Y |
| Authentication | MAC-based authentication,Port-based authentication,Web-based authentication |
| Tagged VLAN | Y |
| Traffic classification | Y |
| System log | Y |
| Included power plug types | UK |
| DHCP snooping | Y |
| Ethernet Ring Protection Switching (ERPS) | Y |
| Static route | Y |
| Voice VLAN | Y |
| Root protection | Y |
| Telnet | Y |
| Fast leave | Y |
| Authentication type | AAA,IEEE 802.1x,Network Access Control (NAC),RADIUS |
| Neighbor discovery snooping | Y |

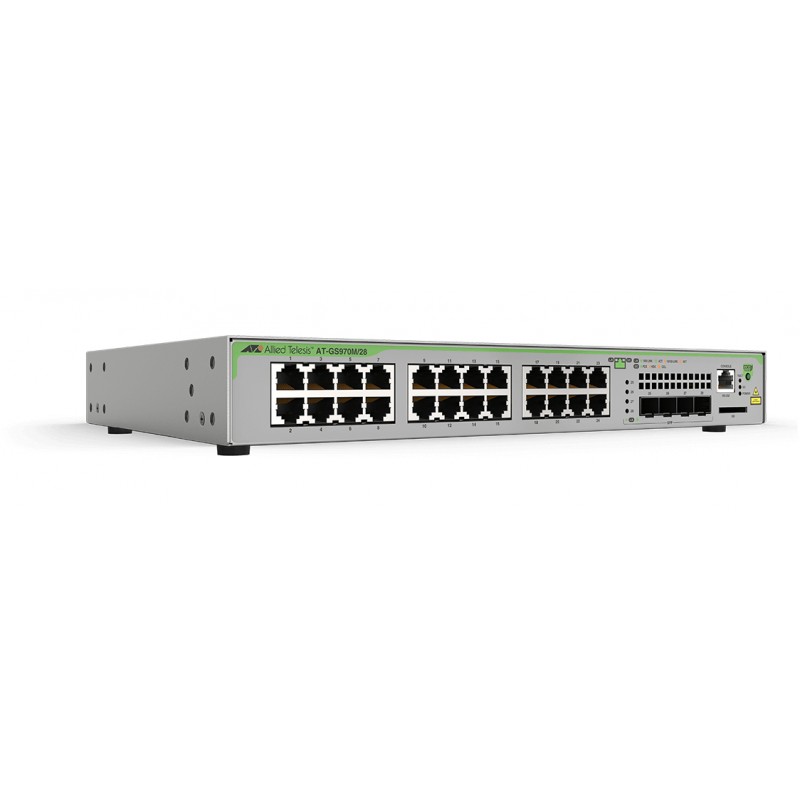

Allied Telesis AT-GS970M/28-30
Managed Gigabit Ethernet Switch, 24x 10/100/1000T ports, 4x 100/1000X SFP ports, UK power cord
AT-GS970M/28-30
Out of Stock
£630.86
£525.72 Ex VAT.
