Fast Ethernet Managed Access Switch
The FS980M/28PS features 24 x 10/100TX PoE+ ports and 4 x 100/1000X SFP uplink/stacking ports.
CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Autonomous Management Framework™(AMF) network, the FS980M switches utilise automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.
The FS980M/28PS features 24 x 10/100TX PoE+ ports and 4 x 100/1000X SFP uplink/stacking ports.
CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Autonomous Management Framework™(AMF) network, the FS980M switches utilise automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Cables included | AC |
| Certification | FCC part15 B, EN55022 Class A, CISPR22:2006, VCCI Class A, C-Tick, EN 55024, CE, cULus, TUV |
| Colour of product | Grey |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Depth | 345 mm |
| DHCP client | Y |
| Fast Ethernet (copper) ports quantity | 24 |
| Fiber ethernet cabling technology | 100Base-X,1000Base-X |
| Fiber optic connector | SFP |
| Flash memory | 128 MB |
| Flow control support | Y |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Heat dissipation | 170 BTU/h |
| Height | 43.2 mm |
| IGMP snooping | Y |
| Input current | 8 A |
| Internal memory | 512 MB |
| IP routing | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| Memory type | DDR2-SDRAM |
| MIB support | Y |
| Multicast support | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3af,IEEE 802.3x,IEEE 802.3z |
| Noise level | 36 dB |
| Number of queues | 8 |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package weight | 7600 g |
| Plug type | Type G (UK) |
| Port mirroring | Y |
| Power consumption (max) | 49 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Safety | UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2 |
| Security algorithms | SNMP,SSH,SSL/TLS |
| Spanning tree protocol | Y |
| Stackable | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 12.8 Gbit/s |
| Throughput | 9.52 Mpps |
| Total Power over Ethernet (PoE) budget | 375 W |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 5100 g |
| Width | 440 mm |
| Jumbo frames | 10000 |
| SFP module slots quantity | 4 |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| Power over Ethernet (PoE) power per port | 30 W |

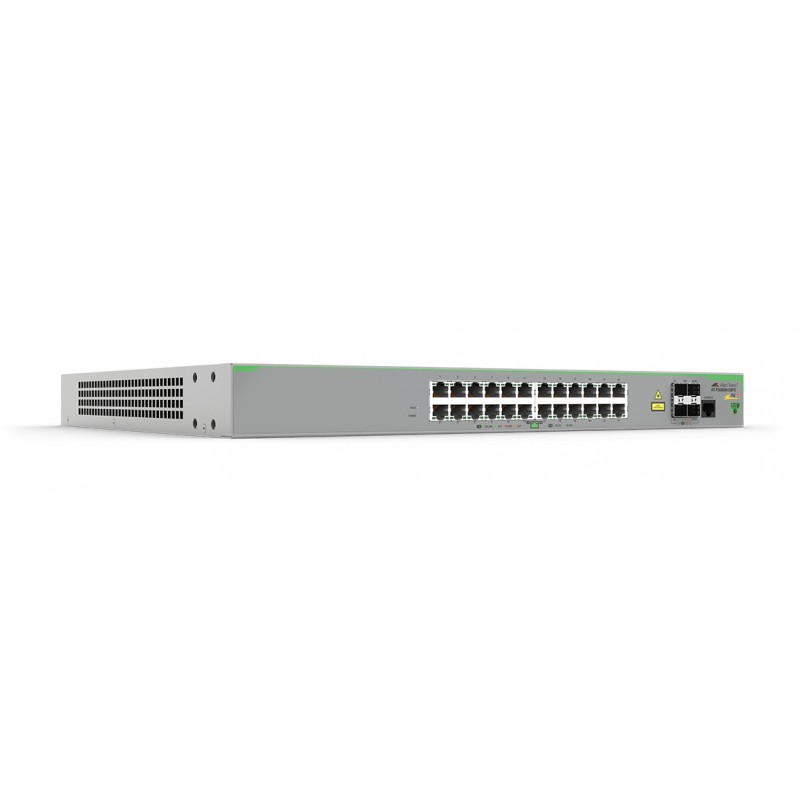

Allied Telesis FS980M/28PS
24 x 10/100TX PoE+ & 4 x 100/1000X SFP, 100-240 VAC, 1.5 A, 50/60 Hz, UK
AT-FS980M/28PS-30
Out of Stock
£1,117.22
£931.02 Ex VAT.
