The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.
- EAP/BPDU passthrough
- Wirespeed performance
- Non-blocking architecture
- Auto-negotiation Gigabit ports
- Auto MDI/MDI-X on TX ports
- Full-duplex flow control
- Silent operation; fanless
- Operating temperature 0-50°C
- EAP/BPDU passthrough
- Wirespeed performance
- Non-blocking architecture
- Auto-negotiation Gigabit ports
- Auto MDI/MDI-X on TX ports
- Full-duplex flow control
- Silent operation; fanless
- Operating temperature 0-50°C
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Buffer size | 128 KB |
| Certification | EAC certification, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
| Colour of product | Grey |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
| Depth | 105 mm |
| Flow control support | Y |
| Form factor | 1U |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Height | 35 mm |
| Housing material | Metal |
| Input current | 0.1 A |
| Jumbo frames support | Y |
| LED indicators | Y |
| MAC address table | 2000 entries |
| Networking standards | IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (max) | 3.1 W |
| Power over Ethernet (PoE) | No |
| Rack mounting | Yes |
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| Throughput | 7.4 mpps |
| Wall mountable | Y |
| Web-based management | Y |
| Weight | 500 g |
| Width | 160 mm |
| Jumbo frames | 9216 |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Included power plug types | UK |

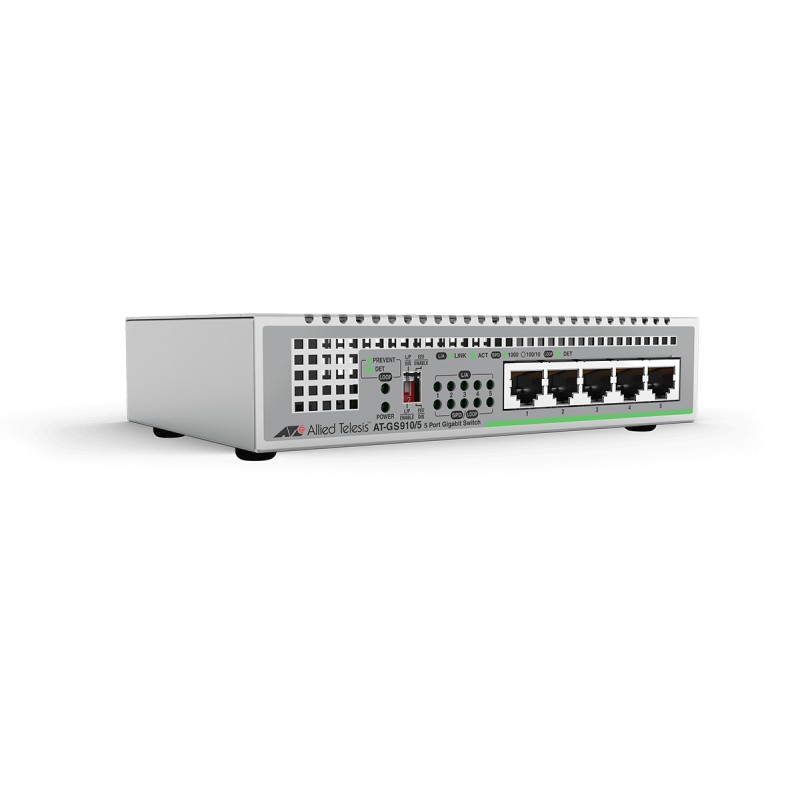

Allied Telesis AT-GS910/5-30
Gigabit Ethernet Unmanaged Switch, 5-port 10/100/1000T, Internal PSU, UK Power Adapter
AT-GS910/5-30
Out of Stock
£75.18
£62.65 Ex VAT.
