Allied Telesis AT-GS950/16PS
  • Allied Telesis AT-GS950/16PS
  • Allied Telesis AT-GS950/16PS

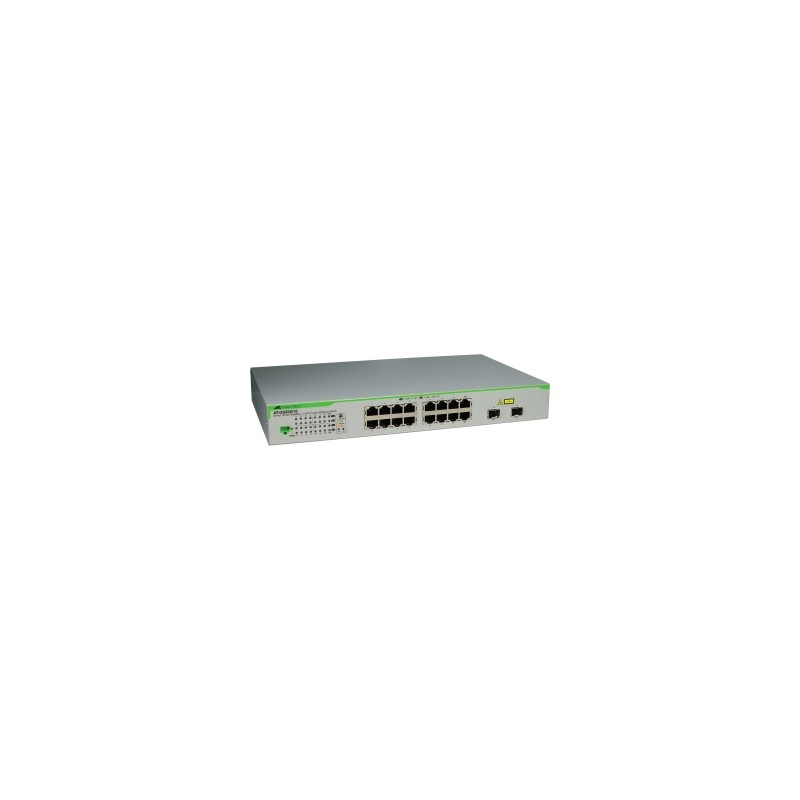

The Allied Telesis AT-GS950/16PS Gigabit Ethernet WebSmart switch features sixteen 10/100/1000T ports and two SFP combo ports, delivering up to 30 Watts per port (PoE+) to support video surveillance and security cameras, wireless access points, IP phones and other PoE powered devices. The PoE option eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places. Thanks to its compact size, the AT-GS950/16PS is ideal for the edge of SMB businesses, classrooms, cafes and Point of Sale (POS) applications.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationRoHS\nEu-RoHS\nChina RoHS\nWEEE
Colour of productGreen,Grey
Combo SFP ports quantity2
Console portRJ-45
Copper ethernet cabling technology1000BASE-T,100BASE-T,10BASE-T
DC-in jackYes
Depth250 mm
DHCP clientYes
DHCP serverYes
Fiber ethernet cabling technology1000BASE‑LX,1000BASE‑SX,100BASE-FX
Fiber optic connectorSFP
Fiber ports quantity2
Flash memory16 MB
Flow control supportYes
Full duplexYes
Gigabit Ethernet (copper) ports quantity16
Height44 mm
IGMP snoopingYes
Internal memory64 MB
LED indicatorsYes
MAC address filteringYes
MAC address table8000 entries
Multicast supportYes
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory1 MB
Port mirroringYes
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Quality of Service (QoS) supportYes
Rack mountingNo
Rate limitingYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Switch typeUnmanaged
Switching capacity32 Gbit/s
Throughput32.8 Mpps
Total Power over Ethernet (PoE) budget185 W
User guideYes
VLAN supportYes
Web-based managementYes
Weight3560 g
Width430 mm

AT-GS95016PS-30.pdf

Allied Telesis AT-GS950/16PS Data Sheet

Download (473.48k)

Allied Telesis AT-GS950/16PS

16 x RJ-45, POE+, 2 x SFP, VLAN, 32Gbps, 23.80Mpps, UK power cord

AT-GS950/16PS-30

Out of Stock

£553.33
£461.11 Ex VAT.
