The Allied Telesis x230 Series of Layer 3 Gigabit switches offers an impressive set of features in a compact design, ready for flexible deployment at the network edge. Gigabit to the desktop ensures maximum network performance for demanding applications.
The Power over Ethernet (PoE+) models are ideal for connecting and remotely powering access and security devices. PoE+ provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and pan-tilt-zoom (PTZ) digital security cameras, supporting the growth of wireless networking and digital video surveillance.
The fully featured AlliedWare Plus™ operating system brings a host of powerful features, such as Ethernet Protection Switched Ring (EPSRing™) for high-speed ring connectivity, Allied Telesis Management Framework™ (AMF) for automated management, and eco-friendly Energy Efficient Ethernet (EEE) to reduce running costs.
The x230 Series is perfect for network access connectivity.
The Allied Telesis x230-28GT features 24 x 10/100/1000T ports with 4 SFP Gigabit uplink ports. A full feature-set makes it ideal for applications at the network edge, supporting Gigabit to the desktop for maximum network performance.
The Power over Ethernet (PoE+) models are ideal for connecting and remotely powering access and security devices. PoE+ provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and pan-tilt-zoom (PTZ) digital security cameras, supporting the growth of wireless networking and digital video surveillance.
The fully featured AlliedWare Plus™ operating system brings a host of powerful features, such as Ethernet Protection Switched Ring (EPSRing™) for high-speed ring connectivity, Allied Telesis Management Framework™ (AMF) for automated management, and eco-friendly Energy Efficient Ethernet (EEE) to reduce running costs.
The x230 Series is perfect for network access connectivity.
The Allied Telesis x230-28GT features 24 x 10/100/1000T ports with 4 SFP Gigabit uplink ports. A full feature-set makes it ideal for applications at the network edge, supporting Gigabit to the desktop for maximum network performance.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Certification | UL, cUL, UL-EU, RoHS |
| Colour of product | Grey |
| Compatible memory cards | SD,SDHC |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,10GBASE-T,100BASE-FX,100BASE-T,1000BASE-LX,1000BASE-SX |
| Country of origin | China |
| Depth | 231 mm |
| DHCP client | Yes |
| Electromagnetic compatibility | EN55022 A, FCC A, VCCI A |
| Fiber ethernet cabling technology | 1000BASE-X,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX |
| Fiber optic connector | SFP |
| Flash memory | 64 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Heat dissipation | 89 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| Input current | 2.4 A |
| Internal memory | 256 MB |
| IP routing | Yes |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Management protocols | SNMP |
| Memory type | DDR SDRAM |
| MIB support | SNMP |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q,IEEE 802.1v,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Noise level | 34 dB |
| Number of queues | 8 |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 1.5 MB |
| Physical stacking (units) | 32 |
| Port mirroring | Yes |
| Power consumption (max) | 26 W |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Safety | UL60950-1, CAN/CSA-C22.2 # 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Security algorithms | 802.1x RADIUS,EAP,HTTPS,MD5,PEAP,SNMP,SSH,SSH-2,SSL/TLS |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Supported network protocols | IPv6, IPv4, DHCP, NTPv6, STP, BDPU, IP, ICMP, ARP, LLDP, SNMP, MSTP, RSTP, RIP, TLS,TTLS,PEAP, MD5, Telnet, GVRP |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Yes |
| Throughput | 41.7 Mpps |
| Transmission distance (max) | 80 km |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 2400 g |
| Width | 341 mm |
| ARP inspection | Yes |
| Jumbo frames | 10000 |
| Private VLAN | Yes |
| SFP module slots quantity | 4 |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| Authentication | MAC-based authentication,Port-based authentication |
| Traffic classification | Yes |
| Active link detection | Yes |

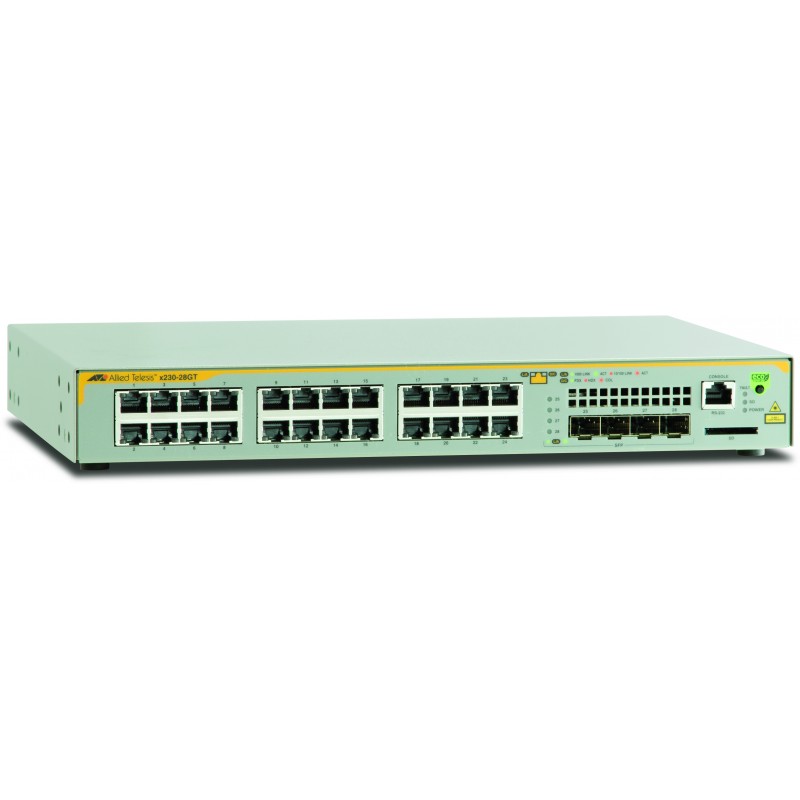

Allied Telesis AT-x230-28GT
IPv6, L2, 24x RJ-45, 4x SFP, POE+, 56Gbps, 41.7Mpps, 341 x 231 x 44 mm, 2.4 kg
AT-X230-28GT-50
Out of Stock
£750.66
£625.55 Ex VAT.
