Gigabit Edge Switch
The Allied Telesis x230-10GP features 8 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. The compact design provides flexible deployment options, and Power over Ethernet Plus (PoE+) provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and Pan, Tilt, and Zoom digital security cameras.
The Allied Telesis x230-10GP features 8 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. The compact design provides flexible deployment options, and Power over Ethernet Plus (PoE+) provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and Pan, Tilt, and Zoom digital security cameras.
| 10G support | No |
| AC input frequency | 47/63 Hz |
| AC input voltage | 90 - 260 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Colour of product | Grey |
| Combo SFP ports quantity | 2 |
| Depth | 215 mm |
| DHCP client | Y |
| DHCP server | Y |
| Flow control support | Y |
| Full duplex | Y |
| Heat dissipation | 81 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| Internal memory | 256 MB |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| MIB support | Y |
| Multicast support | Y |
| Networking standards | IEEE 802.3,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Port mirroring | Y |
| Power consumption (typical) | 24 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Security algorithms | 802.1x RADIUS |
| Stackable | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 12.8 Gbit/s |
| System event log | Y |
| Throughput | 6.5 mpps |
| Web-based management | Y |
| Weight | 2400 g |
| Width | 340 mm |
| ARP inspection | Y |
| Power connector | DC-in jack |

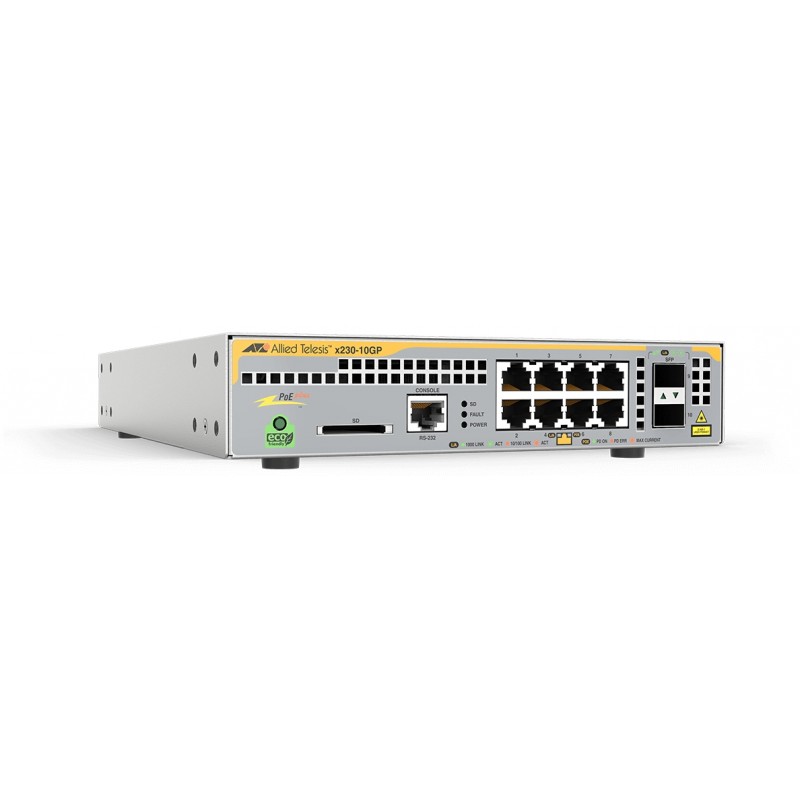

Allied Telesis AT-X230-10GP-30
L3 switch with 8 x 10/100/1000T PoE ports and 2 x 100/1000X SFP ports, UK power cord
AT-X230-10GP-30
In Stock
£978.34
£815.28 Ex VAT.
