0U PDU Distributes, Monitors and Manages Network-Grade AC Power

Recommended for data centers, server rooms and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and properly balance loads without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance.

24 Outlets Dispense Clean Power

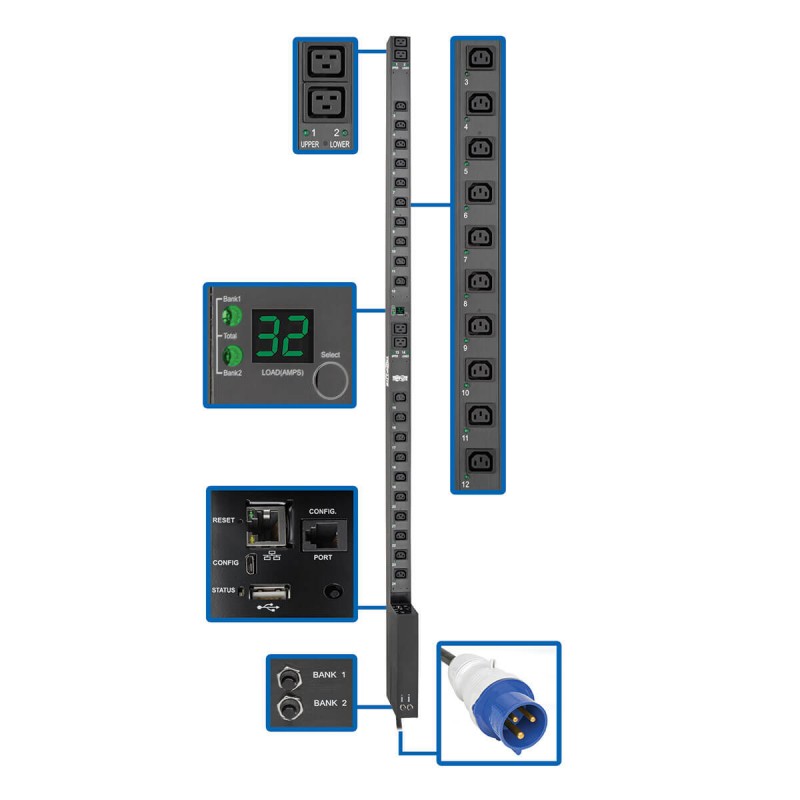

During normal operation, 24 individually controllable outlets—20 C13 and four C19—distribute AC power to connected equipment. Each 230V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into two load banks, each protected by a circuit breaker that trips if the bank’s connected load exceeds its maximum load rating. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Digital Load Meter Helps Prevent Potentially Expensive Overloads

A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. The firmware can be easily upgraded to ensure the PDU continues to perform at its best as connected equipment adds new features.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 0U PDU mounts vertically using the included toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 3.05 m cord with IEC 309 32A Blue (2P+E) input plug connects the single-phase PDU to a compatible AC power source, generator or protected UPS system.

2-Year Warranty

The PDUMV32HVNETLX is backed by a 2-year warranty, ensuring reliability and performance.



TYPICAL APPLICATIONS


● Powering a data center with server racks running mission-critical applications

● Monitoring power loads from various computers, switches, servers and other networking equipment

● Maintaining a computer network in a commercial or industrial facility



● 20 C13 and 4 C19 230V outlets distribute clean power to connected rack equipment

● Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access

● Remote power monitoring and control reduces on-site visits and maintenance costs

● 3.05 m power cord with IEC 309 32A Blue (2P+E) input connects to compatible AC source

● Digital ammeter for on-site load monitoring helps prevent power overloads



Package Includes



● PDUMV32HVNETLX 7.4kW Single-Phase Switched PDU

● (24) Plug-lock insert sleeves

● Rack-mounting hardware

● Spare mounting buttons

● PDUMVROTATEBRKT mounting bracket accessory

● Owner’s manual
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity24 AC outlet(s)
CertificationTAA
Dimensions (WxDxH)56 x 108 x 1776 mm
Maximum current32 A
Mountingvertical
Nominal input voltage230 V
Nominal output voltage230 V
On/off switchY
Package dimensions (WxDxH)166.9 x 1862.1 x 137.9 mm
Package weight7580 g
PDU typesSwitched
Power plugIEC309
Rack capacity0U
RoHS complianceY
TypeSingle-phase
Weight5670 g
Product colourBlack

PDUMV32HVNETLX.pdf

Tripp Lite 7.4kW Single-Phase Switched PDU w/LX Platform Interface, 230V Output, IEC 309 32A Blue, 3.05 m Cord, 0U Data Sheet

Download (166.14k)
