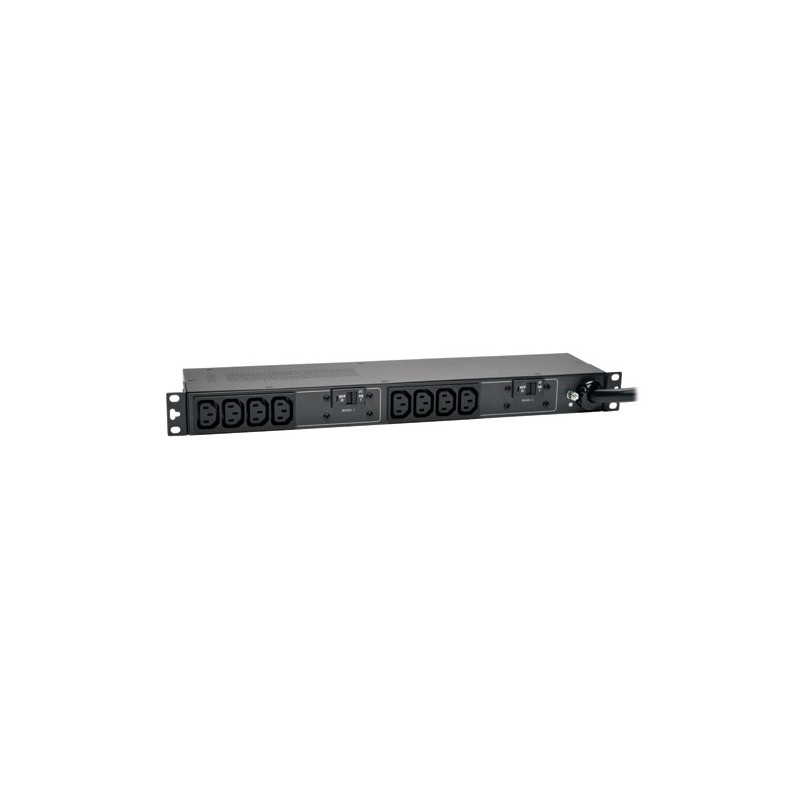

Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
The PDUH32HV 7.4kW Single-Phase 230V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH32HV features 10 total outlets—two in front and eight in the rear. The IEC 309 32A Blue (2P+E) input plug with 3.6 m cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.



The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.



Reliable Single-Phase 32A 230V Power Distribution



● Ideal no-frills PDU for data centers, server rooms and network wiring closets

● 10 total C13 outlets—8 rear and 2 front

● IEC 309 32A Blue (2P+E) input with 3.6 m power cord

● Rear-panel grounding lug

● Dual 20A circuit breakers protect against overloads



Switchless Design



● Prevents accidental shutdowns and costly downtime



Versatile Installation Options



● Reversible all-metal housing faces front or rear in rack

● Supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks

● Also mounts on wall, workbench or under a counter



● IEC 309 32A Blue (2P+E) input with 3.6 m power cord

● 10 total C13 outlets—8 rear and 2 front

● Switchless design prevents accidental shutdown

● Reversible all-metal housing

● Dual 20A circuit breakers protect against overloads"



Package Includes



● PDUH32HV 7.4kW Single-Phase 230V Basic PDU

● Mounting hardware

● Owner’s manual



Batteries not Required to Operate
AC outlet typesC13 coupler
AC outlets quantity10 AC outlet(s)
CertificationCE
Colour of productBlack
Dimensions (WxDxH)445 x 95.3 x 45 mm
MaterialMetal
Maximum current32 A
MountingHorizontal
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Operating altitude0 - 3000 m
Output voltage240 V
Package dimensions (WxDxH)514 x 286 x 76 mm
Package weight3210 g
PDU typesBasic
Power plugIEC309
Rack mounting1U
RoHS complianceYes
Storage temperature (T-T)-15 - 50 °C
Weight2870 g

PDUH32HV.pdf

Tripp Lite 7.4kW Single-Phase 230V Basic PDU, 10 C13 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount Data Sheet

Download (486.53k)
