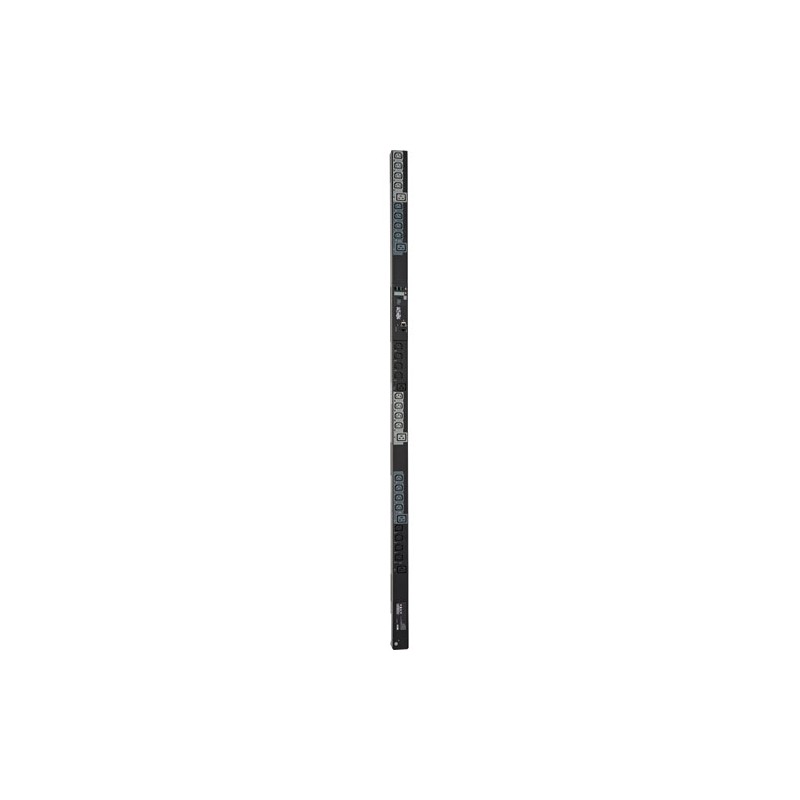

Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
  • Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U
Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase.



- Switched 11.5kW 3-Phase 360/380/400/415V input 200/220/230/240V output PDU

- Reports voltage & load per-phase via ethernet interface

- 1% billing-grade accuracy; Digital display reports detailed status information

- 70in / 1778mm 0U vertical format; Toolless button-mount installation



- 24 C13 & 6 C19 single phase outlets; Plug-lock cable retention inserts keep power cables secure

- IEC309 16/20A Red (3P+N+E) 3 phase input; 6 ft. / 1.8m line cord

- TAA Compliant



- 11.5kW Switched 360/380/400/415V input 200/220/230/240V output PDU with built-in web/network interface

- IEC309 16/20A Red (3P+N+E) 360-415V 3 phase input with 6-ft. / 1.8m line cord

- 0U, 70 inch / 178cm vertical form factor

- 30 switched 200-240V outlets (24 C13, 6 C19) in 3 single phase load banks

- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis

- Enables reboot of locked equipment, custom power-on/power-off sequences, load shedding of optional loads and disabling unused outlets

- Network interface provides PDU control and data regarding input voltage and load levels per-phase

- Built-in local digital display and remote web/network interface reports detailed voltage, amperage and kilowatt output values per phase with additional reporting options for power unbalance percentage, IP address and sensor based temperature and humidity data (requires ENVIROSENSE sensor)

- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors

- Local display supports electronic 180 degree display rotation for overhead or under-floor input cable orientation

- Supports user-specified alarm notification thresholds

- DHCP/Manual configuration support

- 10/100 Mbps auto-sensing

- Real-time clock backup maintains the time of day and date even if the PDU is unpowered

- Tiered access privileges allow an administrator and a guest to login via web browser

- Alert notifications via email or SNMP traps offer immediate event notification

- Firmware upgrade ability supports future product enhancements

- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTPP, DHCP, BootP, NTP protocols

- Fully compatible with FREE PowerAlert Network Management System / NMS Software

- Included set of Plug-lock inserts keep C14 and C20 power cords solidly connected to PDU outlets

- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity30 AC outlet(s)
CertificationTested to UL60950-1 (USA), CSA (Canada), NOM (Mexico), CE (EN 60950-1), CE / FCC Class A (Emissions), RoHS (Hazardous Substances), TAA Compliant
Colour of productBlack
Dimensions (WxDxH)55.1 x 73 x 1778 mm
Ethernet LAN (RJ-45) ports2
Input frequency50/60 Hz
LED indicatorsYes
MaterialMetal
Maximum current16 A
Maximum power11500 W
MonitoringCurrent
Mountingvertical
Nominal input voltage380-415 V
Nominal output voltage200-240 V
On/off switchYes
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)32 - 122 °F
Package dimensions (WxDxH)246 x 1928 x 175 mm
Package weight9600 g
PDU typesSwitched
Power plugIEC309
Rack mounting0U
RoHS complianceYes
Size70 "
Storage temperature (T-T)-15 - 60 °C
Weight6600 g
Master AC outlets quantity24
Slave AC outlets quantity6

PDU3XVS6G20.pdf

Tripp Lite 11.5kW 3-Phase Switched PDU, 200/220/230/240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V input, 0U Data Sheet

Download (495.77k)
