Antenna | Y |
Antenna type | External |
Bluetooth | Y |
Bluetooth version | 5.0 |
Certification | FCC |
Chipset | Intel Wi-Fi 6 |
Component for | PC |
Connectivity technology | Wireless |
Depth | 120.8 mm |
Frequency range | 2.4 - 5 GHz |
Height | 21.5 mm |
Host interface | PCI Express |
Interface | WLAN / Bluetooth |
Internal | Y |
Maximum data transfer rate | 2402 Mbit/s |
Modulation | 16-QAM,64-QAM,256-QAM,CCK,DBPSK,DQPSK,OFDM |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Receiver sensitivity | 5 GHz :\n11ax HT160:-56.25dBm\n11ax HT80: -59dBm\n11ax HT40: -62.25dBm\n11ax HT20: -65dBm\n\n11ac HT160:-62dBm\n11ac HT80: -65.5dBm\n11ac HT40: -69.75dBm\n11ac HT20: -73.75dBm\n11n HT40: -74.5dBm\n11n HT20: -77.5dBm\n11a 54Mbps: -77.75dBm\n11a 6Mbps: |
RoHS compliance | Y |
Security algorithms | 64-bit WEP,128-bit WEP,802.1x RADIUS,WPA,WPA-PSK,WPA2,WPA2-PSK,WPA3 |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
Width | 95.2 mm |
Windows operating systems supported | Windows 10 |
WLAN data transfer rates supported | 54,300,574,1733,2402 Mbit/s |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Product colour | Black,Red |
Transmitting power (FCC) | 27 dBm |
Intel Wi-Fi 6 Chipset, 2.4/5 GHz, Bluetooth 5.0

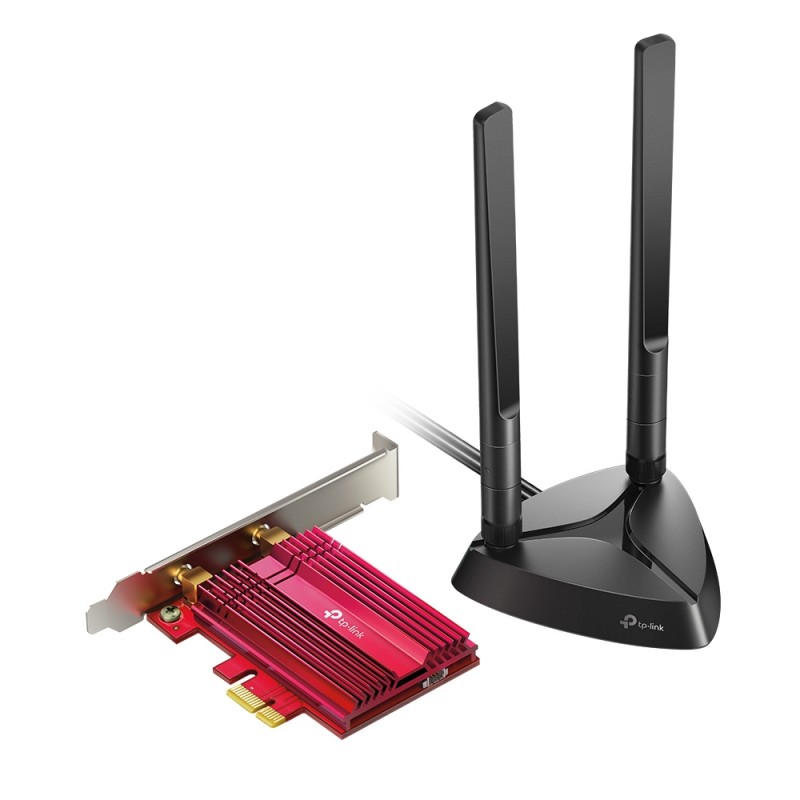

ARCHER TX3000E
In Stock
