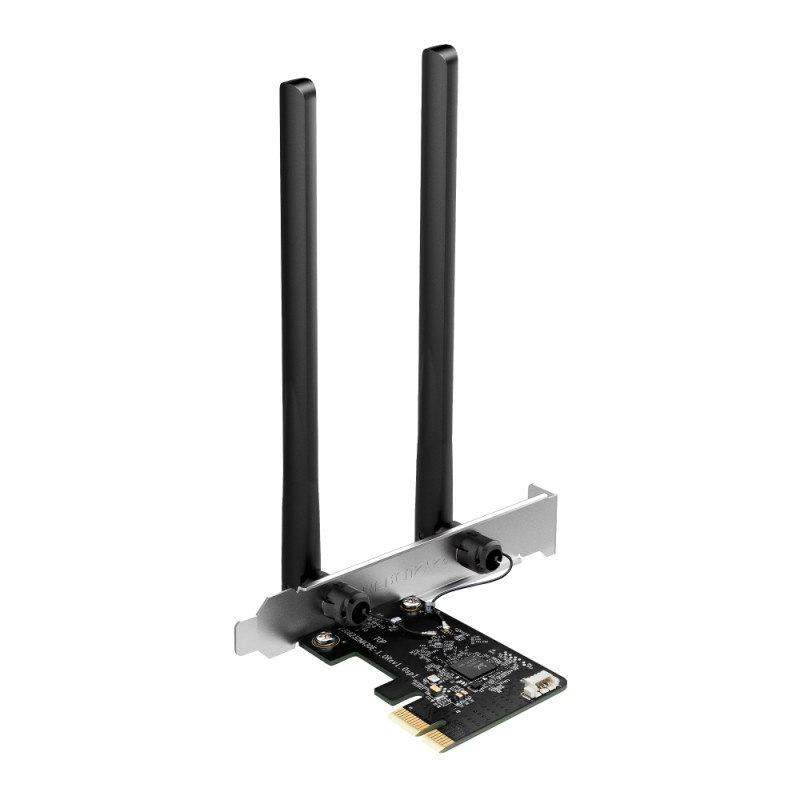

Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
  • Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
AC1200 Dual Band Wi-Fi for Lag-free Work and Entertainment

The MA30E connects devices on both 2.4 GHz and 5 GHz bands simultaneously, offering a superior lag-free experience for work and play. Combining 300 Mbps 2.4 GHz (perfect for surfing and emailing) and 867 Mbps 5 GHz (ideal for HD streaming and gaming), you have the flexibility to allocate your devices to dedicated networks to do more at the same time.

Bluetooth 5.0 Supported
MA30E makes your PC Bluetooth-capable with ultra-fast Bluetooth 5.0 which achieves more stable connection, farther range and faster transmission speeds than Bluetooth 4.2. Just connect your Bluetooth devices to your computer and enjoy with ease.

Boost Wireless Range
Two high-performance antennas reach your router from farther away with more precise directional range, sustaining faster and more stable wireless connections.

Overall Security Protection
The latest security standard, WPA3, provides improved comprehensive Wi-Fi protection to defend your devices and private information against brute-force attacks.
AntennaY
CertificationFCC, CE, RoHS
Component forPC
Connectivity technologyWireless
Depth120.8 mm
Height21.5 mm
Host interfacePCI Express
InterfaceWLAN / Bluetooth
InternalY
Maximum data transfer rate1200 Mbit/s
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Quick installation guideY
Receiver sensitivity5 GHz: 11ac HT80: -59.0dBm; 11n HT40: -68.5dBm; 11a 54Mbps: -73.5dBm; 11a 6Mbps: -91dBm , 2.4 GHz: 11n HT40: -69.5dBm; 11g 54Mbps: -74dBm; 11b 11Mbps: -87dBm
Security algorithmsWPA-PSK,WPA2-PSK,WPA3-SAE
Storage relative humidity (H-H)5 - 90 %
Wi-FiYes
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Width226.3 mm
Windows operating systems supportedWindows 10,Windows 11
WLAN data transfer rates supported11,54,300,867 Mbit/s
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Resource CDY
Product colourBlack
Antenna direction typeomni-directional

ma30e.pdf

Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter Data Sheet

Download (519.5k)
