All in Seconds with Blazing Fast 2.5G Speeds

Incredible 2.5G Networking

2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

Household Storage, Share in Seconds

For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

2.5G Extremely Fast Internet Response

With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Versatile, Multi-Speed Compatibility

2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.

QoS Support

Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.

Wake On LAN

Remotely power on/off your computer with WOL, good for centralized management.

Low-Profile Bracket

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Easy Setup

Simple software installation with the intuitive Utility on the provided CD.

Comprehensive System Support

Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.
Component forPC/notebook
Connectivity technologyWired
Depth21.5 mm
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Full duplexY
Height98.2 mm
Host interfacePCI Express
InterfaceEthernet
InternalY
LED indicatorsActivity,Link
Linux operating systems supportedY
Maximum data transfer rate2500 Mbit/s
Mounting brackets includedY
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth152.5 mm
Package height41.5 mm
Package weight170 g
Package width201.5 mm
PCI version2.1
Quick installation guideY
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022
Storage relative humidity (H-H)5 - 90 %
Wake-on-LAN readyY
Width120.8 mm
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7
Resource CDY
Product colourBlack,Grey
Sustainability complianceY
Compliance certificatesRoHS,Federal Communications Commission (FCC),CE

tx201.pdf

TP-Link 2.5 Gigabit PCIe Network Adapter Data Sheet

Download (469.21k)

Similar products

  • TP-LINK TL-WN822N 300Mbps High Gain Wireless N USB Adapter
    TP-LINK TL-WN822N 300Mbps High Gain...
  • TP-LINK TL-WN823N
    TP-LINK TL-WN823N
  • TP-LINK TL-WN881ND
    TP-LINK TL-WN881ND
  • TP-LINK UE300
    TP-LINK UE300
  • TP-Link TL-WN725N
    TP-Link TL-WN725N

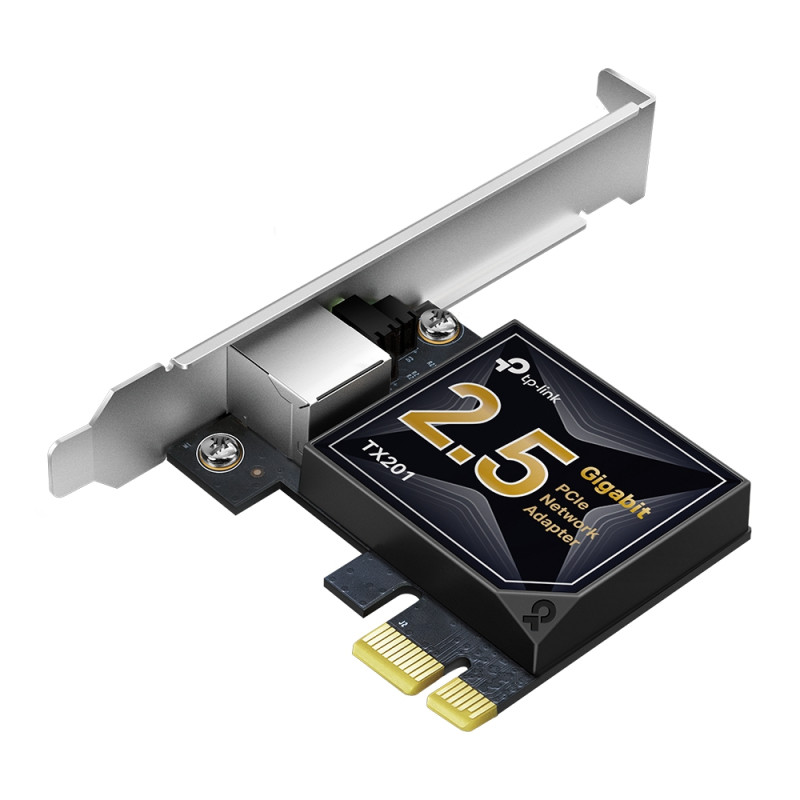

TP-Link 2.5 Gigabit PCIe Network Adapter
