Antenna | Y |
Antenna type | internal |
Certification | CE, FCC |
Connectivity technology | Wired |
Depth | 7.1 mm |
Frequency range | 2.4 - 5 GHz |
Height | 18.6 mm |
Host interface | USB |
Interface | WLAN |
Internal | N |
Linux operating systems supported | Y |
Mac operating systems supported | macOS |
Maximum data transfer rate | 633 Mbit/s |
Modulation | 16-QAM,64-QAM,256-QAM,CCK,COFDM,DBPSK,DQPSK,OFDM |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Quick installation guide | Y |
Receiver sensitivity | 5GHz:\n11a 6Mbps: -90dBm\n11a 54Mbps: -73dBm\n11n HT20 MCS0: -89dBm\n11n HT20 MCS7: -70dBm\n11n HT40 MCS0: -86dBm\n11n HT40 MCS7: -67dBm\n11ac VHT80 MCS0: -82dBm\n11ac VHT80 MCS9: -56dBm\n2.4GHz:\n11b 1Mbps: -96dBm\n11b 11Mbps: -88dBm\n11g 6Mbps: -89dBm |
RoHS compliance | Y |
Security algorithms | 64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
USB powered | Y |
USB version | 2.0 |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
Width | 15 mm |
Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Windows XP |
WLAN data transfer rates supported | 11,54,150,200,433 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Product colour | Black |
USB 2.0, Omni Directional, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, 5GHz 2.4GHz, DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

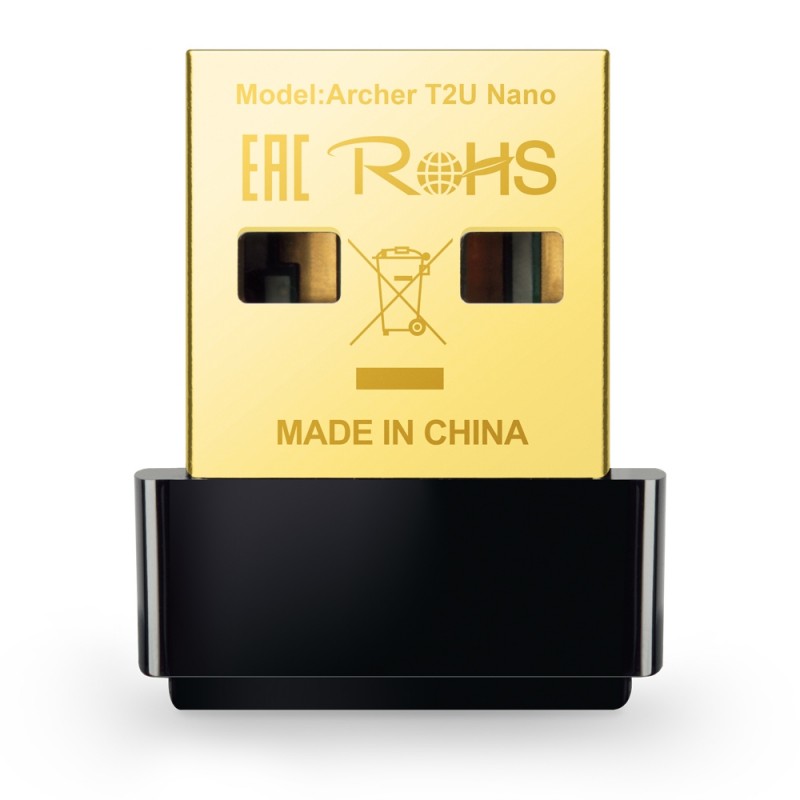

ARCHER T2U NANO
