Antenna | Y |
Bluetooth | Y |
Bluetooth version | 5.2 |
Component for | PC |
Connectivity technology | Wireless |
Depth | 120.8 mm |
Height | 21.5 mm |
Host interface | PCI Express |
Interface | WLAN / Bluetooth |
Internal | Y |
Maximum data transfer rate | 5400 Mbit/s |
Mounting brackets included | Y |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Package depth | 216.5 mm |
Package height | 48.5 mm |
Package weight | 480 g |
Package width | 271.5 mm |
Quick installation guide | Y |
Security algorithms | WEP,WPA,WPA-PSK,WPA2,WPA2-PSK,WPA3 |
Storage relative humidity (H-H) | 5 - 90 % |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
Width | 95.2 mm |
Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64,Windows 11 Enterprise x64,Windows 11 x64 |
WLAN data transfer rates supported | 11,54,300,1732,2402 Mbit/s |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Operating modes | Infrastructure mode |
Resource CD | Y |
Product colour | Black,Red |
Transmitting power (FCC) | 5 GHz: 20dBm, 2.4 GHz: 20dBm, 6 GHz: 12dBm dBm |
Sustainability certificates | CE,Federal Communications Commission (FCC),RoHS |
Sustainability compliance | Y |
Harmonized System (HS) code | 85176990 |
Antenna design | External |
Bluetooth header cable | Y |

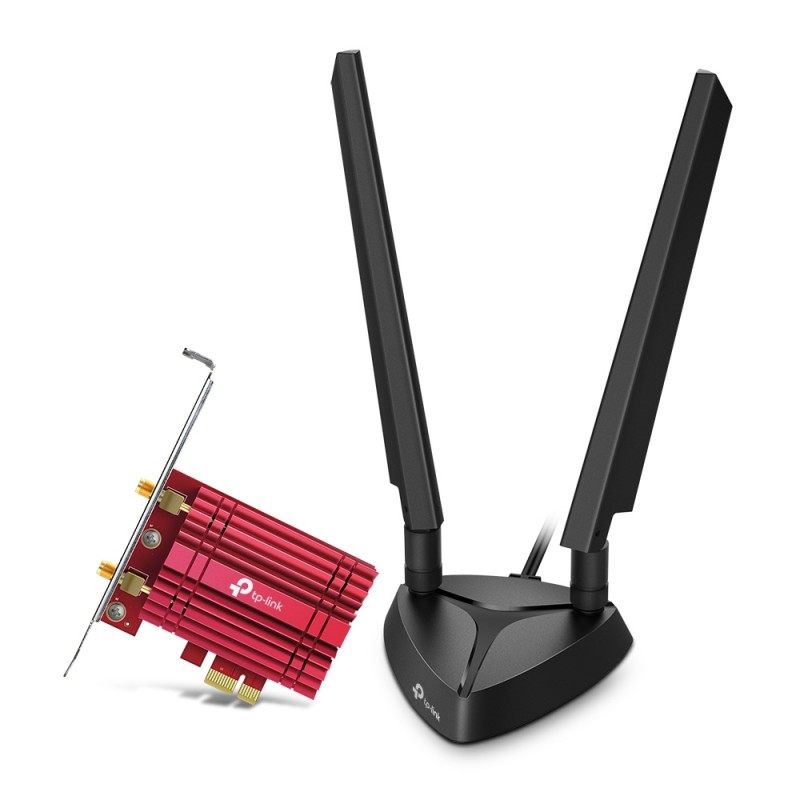

IEEE 802.11a/b/g/n/ac/ax, 2.4/5/6 GHz, 95.2 ×120.8 ×21.5 mm
archer txe75e
