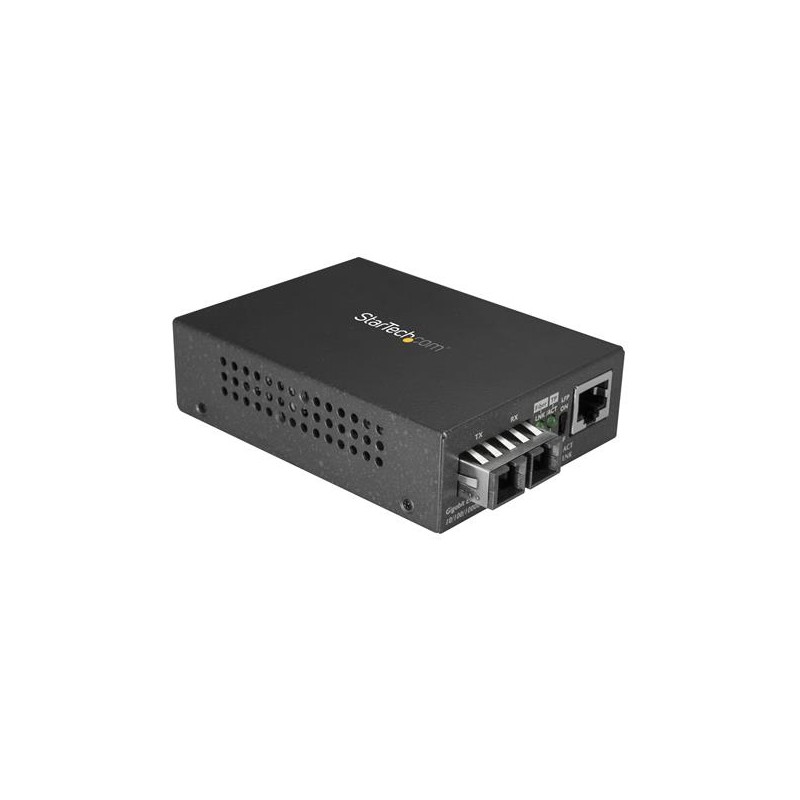

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
AC adapter includedY
Auto MDI/MDI-XY
CertificationCE, FCC
Connectivity technologyWired
Converter input interface100BASE-TX,1000BASE-T
Converter output interface1000BASE-SX
Data transfer rate (max)1000 Mbit/s
Depth70 mm
Duplex systemFull
Ethernet interface typeFast Ethernet,Gigabit Ethernet
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
External power adapterY
Fiber mode structureMulti-mode
Fiber optic connectorSC
Fiber ports quantity1
Height26 mm
Housing materialSteel
Input current0.5 A
Input voltage100 - 240 V
InternalN
Jumbo frames supportY
LED indicatorsActivity,Link,Power
Maximum transfer distance550 m
Mean time between failures (MTBF)50000 h
Networking standardsIEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 50 °C
Output current2.6 A
Output voltage5 V
Package depth133 mm
Package height66 mm
Package weight564 g
Package width280 mm
Plug typeType N (BR)
Power consumption (typical)5 W
Quick installation guideY
RoHS complianceY
Storage temperature (T-T)-10 - 70 °C
Store-and-forwardY
Wavelength850 nm
Weight200 g
Width97 mm
Wavelength-division multiplexing (WDM)N
Jumbo frames9000
Product colourBlack

MCMGBSCMM055.pdf

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m Data Sheet

Download (135.41k)

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m

StarTech.com Fiber Media Converter - 1000Base-SX - 550m - Multi Mode - Fiber to Ethernet Converter - Fiber to Copper Converter

MCMGBSCMM055

In Stock

£87.87
£73.23 Ex VAT.
