OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
  • OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
  • OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
  • OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
  • OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
  • OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities

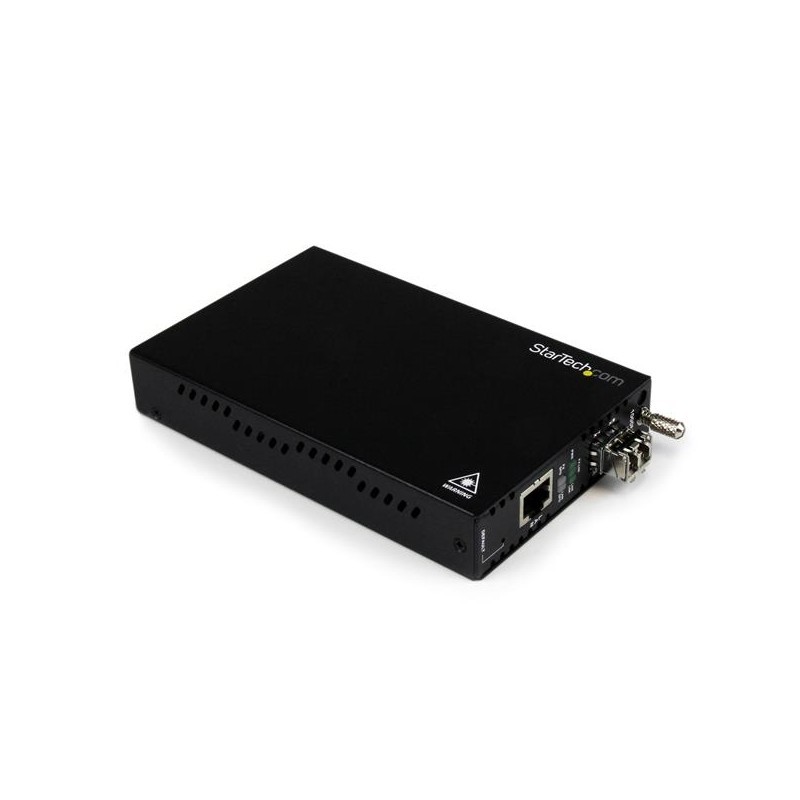

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.

For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Auto MDI/MDI-XYes
CertificationFCC, CE
Colour of productBlack
Connectivity technologyWired
Converter input interface1000Base-LX,1000Base-SX,1000Base-T,100Base-TX,10Base-T
Converter output interface1000Base-LX,1000Base-SX
Data transfer rate (max)1250 Mbit/s
DC-in jackYes
Depth163 mm
Duplex systemFull,Half
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
External power adapterYes
Fiber mode structureMulti-mode
Fiber optic connectorLC
Fiber ports quantity1
Height23 mm
Housing materialSteel
Input current0.36 A
Input voltage100-240 V
InternalNo
LED indicatorsLAN,Link,Power
ManualYes
Maximum transfer distance550 m
Mean time between failures (MTBF)65000 h
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 60 °C
Output current1 A
Output voltage12 V
Package depth203 mm
Package height90 mm
Package weight789 g
Package width135 mm
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
RoHS complianceYes
Storage temperature (T-T)-10 - 70 °C
Wavelength850 nm
Weight411 g
Width87 mm

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah - In-Band OAM 10/100/1000 Fiber Converter

ET91000LCOAM

In Stock

£258.84
£215.70 Ex VAT.
