Auto MDI/MDI-X | Yes |
Certification | CE, FCC |
Colour of product | Black |
Connectivity technology | Wired |
Converter input interface | 1000Base-T |
Converter output interface | 1000Base-LX,1000Base-SX |
Data transfer rate (max) | 2000 Mbit/s |
DC-in jack | Yes |
Dimensions (WxDxH) | 95 x 160 x 20 mm |
Duplex system | Full,Half |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN (RJ-45) ports quantity | 1 |
Ethernet LAN data rates | 1000 Mbit/s |
Ethernet LAN data transfer rates | 10, 100, 1000 Mbit/s |
External power adapter | Yes |
Fiber mode structure | Single-mode |
Fiber optic connector | SC |
Fiber ports quantity | 1 |
Full duplex | Yes |
Internal | No |
Manual | Yes |
Maximum transfer distance | 40000 m |
Mean time between failures (MTBF) | 65000 h |
Operating relative humidity (H-H) | 10 - 90 % |
Operating relative humidity range | 10 - 90 % |
Operating temperature (T-T) | 0 - 60 °C |
Operating temperature range (T-T) | 0 - 60 °C |
Output current | 1 A |
Output voltage | 12 V |
Package depth | 203 mm |
Package height | 90 mm |
Package weight | 700 g |
Package width | 135 mm |
Plug and Play | Yes |
Power consumption (typical) | 4 W |
RoHS compliance | Yes |
Source data-sheet | Icecat.biz |
Storage temperature (T-T) | -10 - 70 °C |
Storage temperature range (T-T) | -10 - 70 °C |
Wavelength | 1310 nm |
Weight | 600 g |

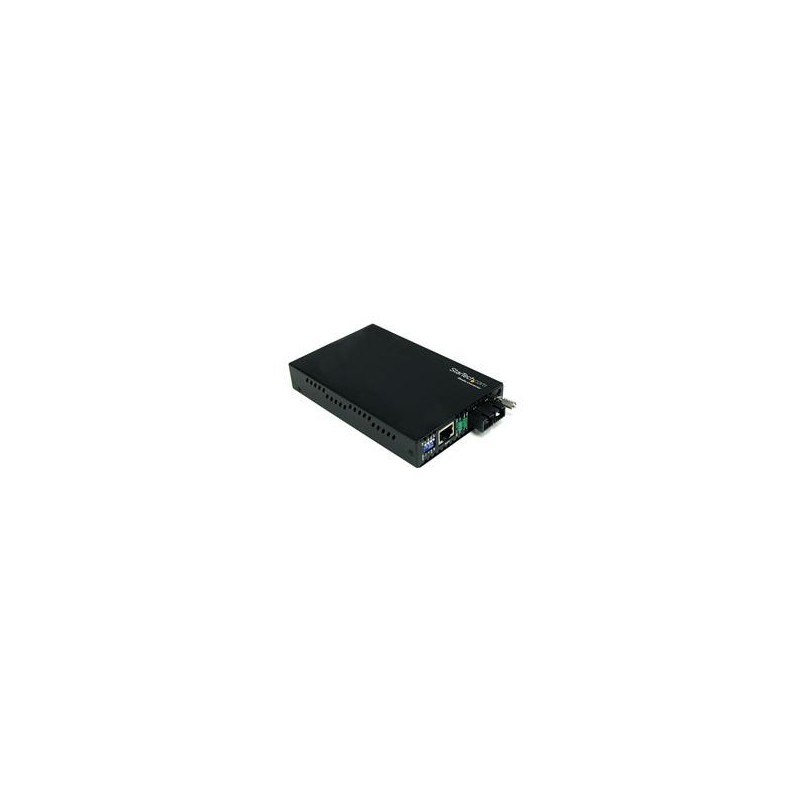

Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps
ET91000SM402
Out of Stock
