Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber

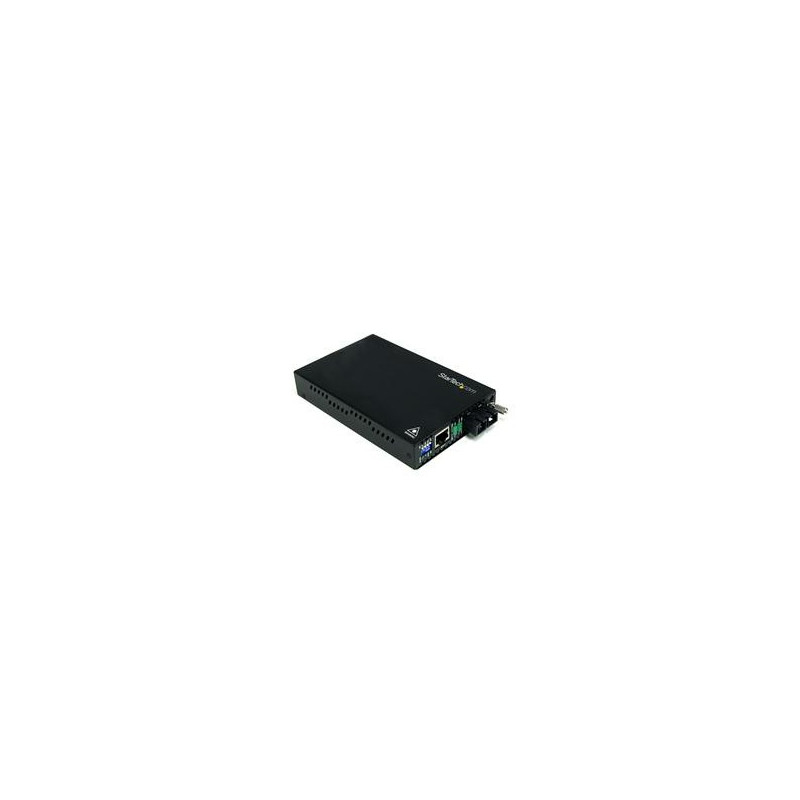

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
| Auto MDI/MDI-X | Yes |
| Certification | CE, FCC |
| Colour of product | Black |
| Connectivity technology | Wired |
| Converter input interface | 10Base-T |
| Converter output interface | 100Base-FX |
| Data transfer rate (max) | 200 Mbit/s |
| DC-in jack | Yes |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
| Duplex system | Full,Half |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN (RJ-45) ports quantity | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN data transfer rates | 10, 100 Mbit/s |
| External power adapter | Yes |
| Fiber mode structure | Multi-mode |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Full duplex | Yes |
| Internal | No |
| Manual | Yes |
| Maximum transfer distance | 2000 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating temperature range (T-T) | 0 - 60 °C |
| Output current | 1 A |
| Output voltage | 12 V |
| Package depth | 203 mm |
| Package height | 90 mm |
| Package weight | 700 g |
| Package width | 135 mm |
| Plug and Play | Yes |
| RoHS compliance | Yes |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage temperature range (T-T) | -10 - 70 °C |
| Wavelength | 1310 nm |
| Weight | 600 g |
