Certification | CE, FCC |
Colour of product | Black |
Connectivity technology | Wired |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Data transfer rate (max) | 20000 Mbit/s |
Depth | 152 mm |
Duplex system | Full |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ethernet cabling technology | 10GBASE-ER,10GBASE-EW,10GBASE-LR,10GBASE-LW,10GBASE-R,10GBASE-SR,10GBASE-SW |
Fiber mode structure | Multi-mode,Single-mode |
Fiber optic connector | SFP+ |
Fiber ports quantity | 1 |
Height | 45 mm |
Housing material | Steel |
Input current | 0.75 A |
Input voltage | 100-240 V |
LED indicators | Alarm,Link,Power |
Mean time between failures (MTBF) | 57000 h |
Networking standards | IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3u |
Operating relative humidity (H-H) | 5 - 85 % |
Operating temperature (T-T) | 0 - 50 °C |
Output current | 3 A |
Output voltage | 12 V |
Package depth | 330 mm |
Package height | 78 mm |
Package weight | 1850 g |
Package width | 238 mm |
Plug type | Type M |
Power consumption (max) | 36 W |
Power over Ethernet (PoE) | No |
Storage temperature (T-T) | -10 - 70 °C |
Weight | 680 g |
Width | 97 mm |
Jumbo frames | 9600 |

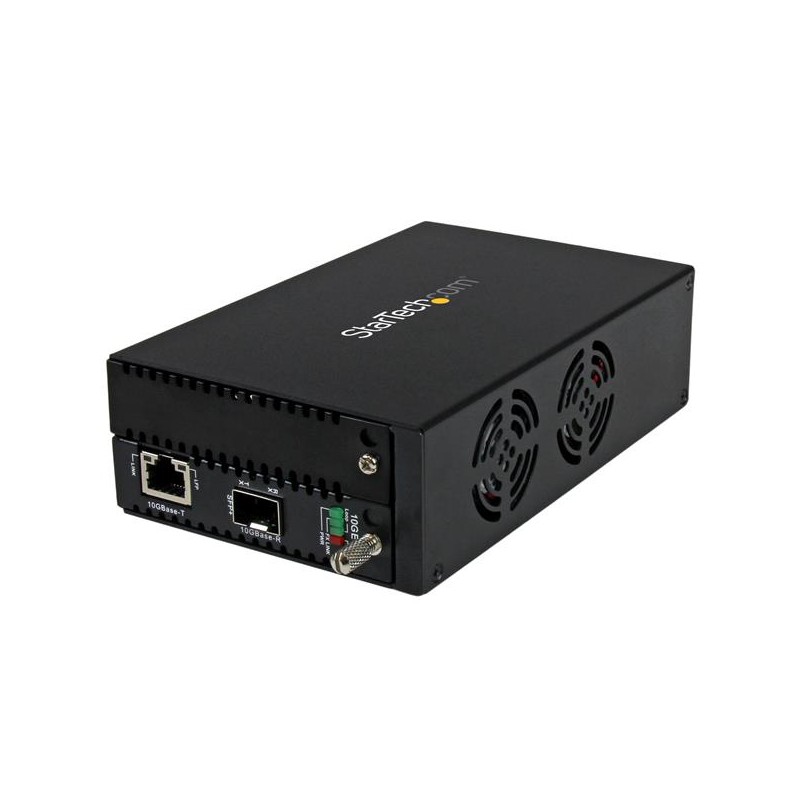

StarTech.com 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed Data Sheet
Download (211.22k)StarTech.com 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed - 10G Ethernet Media Converter
ET10GSFP
