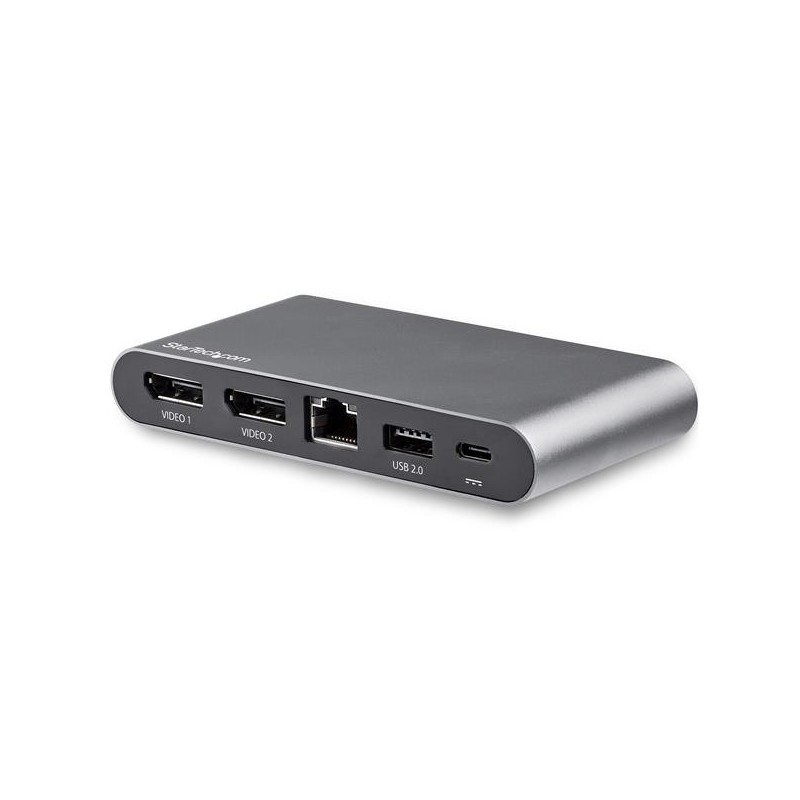

StarTech.com Dual-Monitor USB-C Multiport Adapter - 2 x 4K DP - 100W PD 3.0

More Info
Details
Spec Sheet

Portable Docking Station| 2 x USB-A | Windows | GbE | DP Alt Mode Switch

This USB-C multiport adapter turns your Windows laptop into a portable workstation. The USB-C to dual DisplayPort adapter connects your USB-C laptop to two DisplayPort monitors, letting you power through work faster or make presentations with different views on two displays. It gives you two USB-A ports, a Gigabit Ethernet port, a DP Alt Mode Switch, and laptop charging.

Laptop Charging with PD 3.0

Through 100W Power Delivery 3.0, the USB Type-C to DisplayPort adapter powers itself as well as your laptop and any attached peripherals, with up to 85W laptop charging when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug the power adapter to switch power sources (USB-C power adapter to bus power).

Connect to Dual DP Monitors with Flexible Resolution Options

The USB-C video adapter extends your laptop screen to dual DisplayPort displays. Using the DP Alt Mode switch, you can choose between higher display resolution or faster USB speed to meet your needs, for desktop or portable use. Choose between: dual 4K30 (or single 4K60) resolution with USB 2.0 speed, or dual 1080p (or single 4K30) resolution with USB 3.0 speed.

Connect USB Devices

The USB-C hub with DisplayPort gives you two USB-A ports (one USB 3.0/USB 2.0, and one USB 2.0).

Reliable Network Connectivity

The GbE port ensures reliable network access. A 1 m USB-C cable is included for set-up flexibility.

DK30C2DAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.

The StarTech.com Advantage

- Portable USB-C multiport adapter with flexible DisplayPort dual-monitor or single-monitor video outputs: dual 4K 30Hz, dual 2K 60Hz or single 4K60Hz
- Power both the adapter and your laptop with 100W Power Delivery 3.0 (85W laptop charging) using a USB Type-C power adapter
- Connect your devices with 2x USB-A ports - 1x USB 3.0/2.0 and 1x USB 2.0

10G support	No
Auto MDI/MDI-X	Y
Brand compatibility	Universal
Cables included	USB Type-C
Card reader integrated	N
Certification	CE, FCC
Chipset	VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153
Connectivity technology	Wired
Data transfer rate	5 Gbit/s
Depth	120 mm
DisplayPorts quantity	2
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Full duplex	Y
Height	18.8 mm
Host interface	USB 3.0 (3.1 Gen 1) Type-C
Material	Plastic
Maximum digital resolution	4096 x 2160 pixels
Microphone in	N
Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	0 - 50 °C
Package depth	208 mm
Package height	42 mm
Package weight	220 g
Package width	145 mm
Power consumption (typical)	15 W
Power source type	USB
Power supply	100 W
Quick start guide	Y
RoHS compliance	Y
Storage temperature (T-T)	-20 - 70 °C
UASP support	Y
USB 2.0 ports quantity	1
Weight	200 g
Width	60 mm
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
USB 3.0 (3.1 Gen 1) Type-A ports quantity	1
USB 3.0 (3.1 Gen 1) Type-C ports quantity	1
