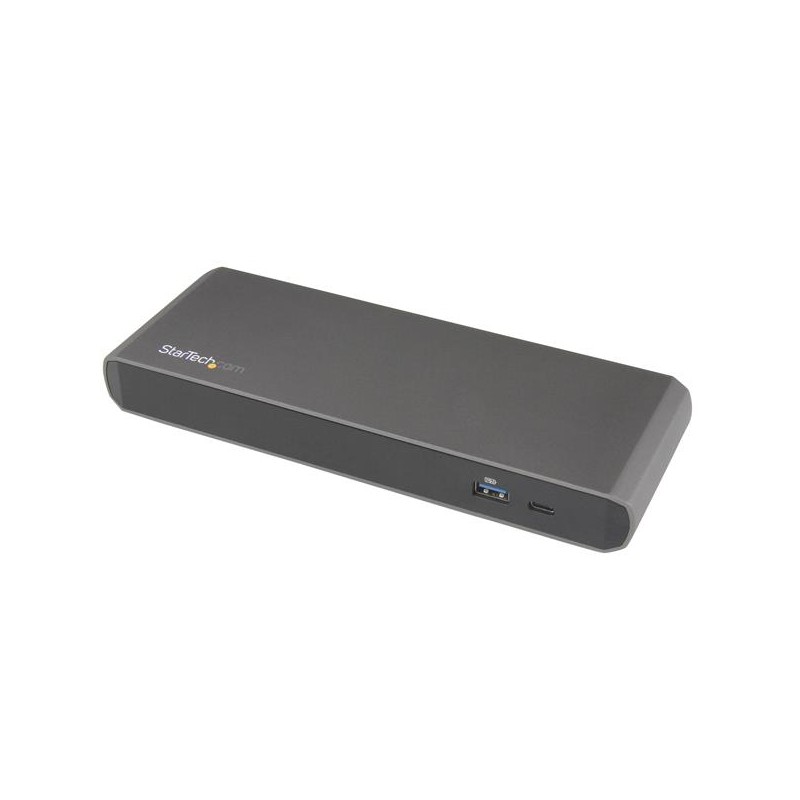

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery
Connect your Thunderbolt 3 equipped MacBook Pro or laptop to two 4K monitors and multiple peripherals, plus power and charge your laptop

This Thunderbolt 3 dual-monitor docking station is the first Thunderbolt docking station to fully support charging Windows PC laptops and the MacBook Pro using USB Power Delivery. With a single cable, the dock delivers up 85W to power and charge your laptop, while powering your peripherals at the same time.

With dual-monitor support, the dock makes it easy to connect two 4K Ultra HD displays (one DisplayPort and one Thunderbolt 3 USB-C port), or a single Thunderbolt 3 display (60Hz). For a dual DisplayPort monitor solution right out of the box, a USB-C to DisplayPort cable (with an extended length of 6 ft./1.8 m) is included, for connecting a second DisplayPort monitor to the Thunderbolt 3 port.

Plenty of power, with support for USB Power Delivery

This Thunderbolt 3 docking station comes with a 170W power adapter for powering and charging (up to 85W) your Windows laptop or MacBook Pro, while simultaneously powering all of the peripheral devices that are connected to the dock. This eliminates the need to use two separate power adapters for your laptop and the docking station, which minimizes the clutter around your workstation.

Finish your work faster with Thunderbolt 3

Thunderbolt 3 is the fastest connection available, and it supports multiple video channels, data, and power without impacting system performance. With up to 40Gbps of throughput, you can add extra displays to your laptop, access files faster, and reduce waiting, so you can accomplish more in the same amount of time.

Multitask at the highest resolution

If you need a larger, higher-resolution viewing area, this dock can help. You can connect two 4K Ultra HD displays, so it’s perfect for working with high-bandwidth or graphics-intensive content.

The Thunderbolt 3 dock supports two 4K (3840 x 2160p or 4096 x 2160p) monitors through the DisplayPort and Thunderbolt 3 USB-C port (a USB-C video adapter might be required depending on monitor). For dual monitors, simply connect your first DP monitor through the dock’s DisplayPort, and a second monitor through the dock’s extra Thunderbolt 3 port using the included USB-C to DisplayPort Adapter Cable or to a USB-C based monitor. The Thunderbolt dock will also work with legacy displays, such as VGA monitors, when coupled with a USB-C to VGA adapter or DP to VGA adapter.

With support for two 4K monitors, the Thunderbolt dock makes it easier to multitask when you’re working with high-definition video or other complex work. Single 5K resolution is supported on 5K capable Thunderbolt 3 monitors through the Thunderbolt 3 USB-C port only.

Connect all of your peripherals using only a single cable

Using the single included Thunderbolt 3 cable and a single port on your laptop, you can transform your macOS Sierra (or later) or Windows 7 (or later) laptop into a full-size workstation with access to new and legacy technologies through a number of different port types. The dock is ideal for virtually all Thunderbolt 3 equipped laptops such as the Dell XPS 13, Dell XPS 15, and the Apple MacBook Pro 13 and 15.

The Thunderbolt 3 docking station features two Thunderbolt 3 USB-C ports for connecting to Thunderbolt devices and other peripherals that use the USB-C connector, as well as DisplayPort video output.

Convenient connections prepare you for the future

You can keep your mobile device charged and ready to go using the dock’s always-on USB fast-charge and sync port, which supports USB Battery Charging Specification 1.2. The Thunderbolt 3 dock offers a variety of other connections that are often missing from port-limited laptops, such as an extra USB-C port (5Gbps - data only) and a Gigabit Ethernet port.

With three USB 3.0 ports in total, you have plenty of ports to connect modern and legacy devices. (USB 3.0 is also known as USB 3.1 Gen 1.) Now, you can rest assured knowing you’re ready for the current and next generation of universal connectivity.

The rear-panel DP and USB-C ports can be used with dual monitors that support lower resolutions, such as 4K at 30Hz or 1080p. StarTech.com offers a variety of USB-C video adapters, such as USB-C to HDMI and USB-C to VGA, which lets you connect a mixture of modern and legacy displays to the docking station.

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max Thunderbolt 3 USB-C Resolution

DisplayPort and Thunderbolt 3 USB-C

(Two Displays - Dual-4K )

3840 x 2160p or 4096 x 2160p

(4K)

3840x 2160p or 4096 x 2160p

(4K)

DisplayPort

(Single Display - 4K)

3840 x 2160p or 4096 x 2160p

(4K)

N/A

Thunderbolt 3 USB-C

(Single Display through DP ALT mode - 4K)

N/A

3840x 2160p or 4096 x 2160p

(4K - 60Hz)

Thunderbolt 3 USB-C Daisy Chain

N/A

Dependent on the number of Thunderbolt 3 displays

*Lower resolutions are also supported.

*When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter may be required depending on the input of your display.

Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).

The TB3DK2DPPDUE features a rugged aluminum casing, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Your computer’s Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:

• BIOS

• Thunderbolt firmware

• Thunderbolt 3 controller drivers

• Thunderbolt 3 software

The required updates will vary depending on your computer.

For an up-to-date list of affected computers and instructions, visit thunderbolttechnology.net/updates. If your computer's manufacturer isn’t listed on the Thunderbolt website, contact your manufacturer.

The StarTech.com Advantage

- Supports USB Power Delivery 2.0 and includes a 170W power adapter to power and charge (up to 85W) your MacBook Pro or Windows-based laptop, and power your peripheral devices
- Improve your workflow with single-cable docking and up to 40Gbps bandwidth — twice the speed of Thunderbolt 2 (20Gbps) and eight times faster than USB 3.0 (5Gbps)
- Supports dual-4K monitors, with 3840 x 2160p or 4096 x 2160p on each display
AC adapter includedY
Auto MDI/MDI-XY
Brand compatibilityUniversal
Cable length0.52 m
Cables includedAC,Thunderbolt,USB Type-C
Card reader integratedN
CertificationCE, FCC
ChipsetIntel - Alpine Ridge DSL6540, Fresco Logic - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT
Colour of productBlack,Grey
Connectivity technologycable
Data transfer rate40 Gbit/s
DC-in jackY
Depth220 mm
DisplayPorts quantity1
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexY
Headphone connectivity3.5 mm
Headphone outputs1
Height27 mm
Host interfaceUSB 3.0 (3.1 Gen 1) Type-C
Mac compatibilityY
Mac operating systems supportedMac OS X 10.12 Sierra
ManualY
MaterialAluminium,Plastic
Maximum digital resolution4096 x 2160 pixels
Microphone inY
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of displays supported2
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)5 - 40 °C
Package depth248 mm
Package height176 mm
Package weight1600 g
Package width148 mm
RoHS complianceY
Storage temperature (T-T)-40 - 70 °C
UASP supportY
USB data transfer rates480,5000 Mbit/s
Weight474 g
Width80 mm
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home
USB 3.0 (3.1 Gen 1) Type-A ports quantity2
Thunderbolt 3 ports quantity2

TB3DK2DPPDUE.pdf

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 85W Power Delivery Data Sheet

Download (279.49k)
