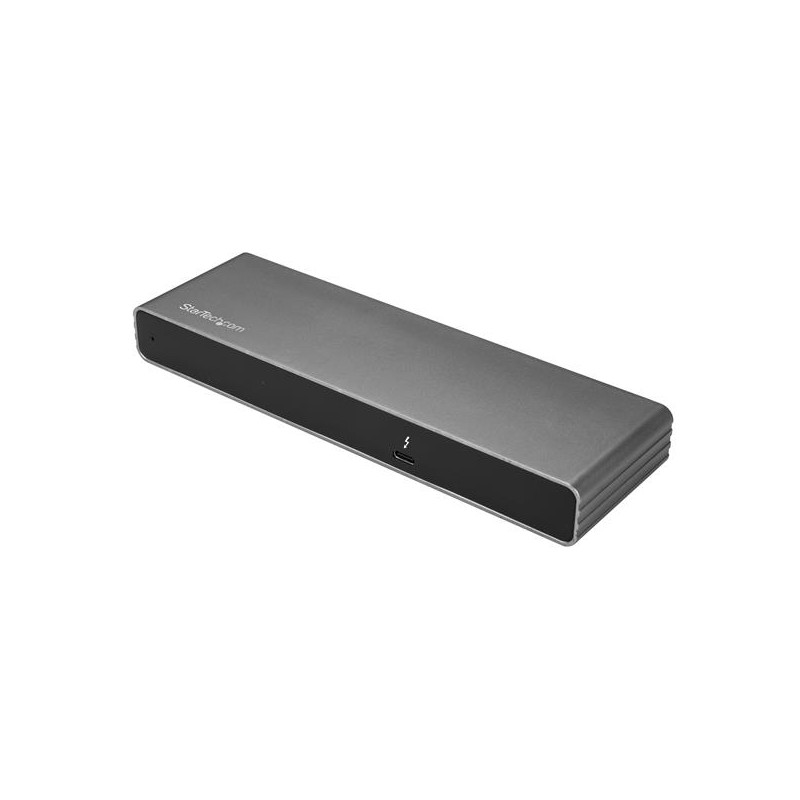

StarTech.com Thunderbolt 3 Dock - Mac & Windows - Dual 4K 60Hz - 85W Power Delivery

More Info
Details
Spec Sheet

"Connect your Thunderbolt 3 equipped MacBook or laptop to multiple monitor combinations (DP, HDMI, VGA), GbE and two USB 3.0 ports, plus power and charge as you work

Create a powerful and flexible workstation with this Thunderbolt 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows laptop to two 4K monitors, through a single Thunderbolt 3 cable. Connect your peripherals with two USB 3.0 ports, and power and charge your laptop with 85W Power Delivery.

The speed and flexibility you need

Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Run resource-demanding applications on two displays without draining system resources.

Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA. The dock offers many dedicated dual-video options:

2x DisplayPort (4096 x 2160p @ 60Hz)

1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)

One power source with 85W charging

Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it’s docked. It provides up to 85W of charging power through Power Delivery.

The ports you need most

Harness the reliability of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.

The TB3DK2DHVUE is fully Thunderbolt 3 Certified, and backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Easily create a powerful dual UHD 4K workstation for your Thunderbolt 3 laptop - Mac or Windows
- Dedicated dual video output with flexible monitor options - Dual DP / DP + HDMI / DP + VGA / HDMI + VGA
- Power and charge your laptop and power your peripherals at the same time with 85W Power Delivery"

10G support	No
AC adapter included	Y
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Y
Cable length	0.5 m
Cables included	AC,Thunderbolt
Card reader integrated	N
Certification	CE, FCC
Chipset	Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
Compatible power plug types	EU,UK
Connectivity technology	Wired
DC-in jack	Y
Depth	196 mm
DisplayPorts quantity	2
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Full duplex	Y
HDMI ports quantity	1
Height	23.5 mm
Host interface	Thunderbolt 3
Input current	1.8 A
Mac compatibility	Y
Mac operating systems supported	Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra
Manual	Y
Material	Aluminium
Maximum digital resolution	4096 x 2160 pixels
Microphone in	N
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Output current	6.32 A
Output voltage	19 V
Package depth	254 mm
Package height	65 mm
Package weight	1300 g
Package width	187 mm
Plug type	Type N (BR)
Power consumption (typical)	120 W
Power source type	AC
Power supply type	External
RoHS compliance	Y
UASP support	Y
VGA (D-Sub) ports quantity	1
Width	58.6 mm
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
USB 3.0 (3.1 Gen 1) Type-A ports quantity	2
Product colour	Grey
