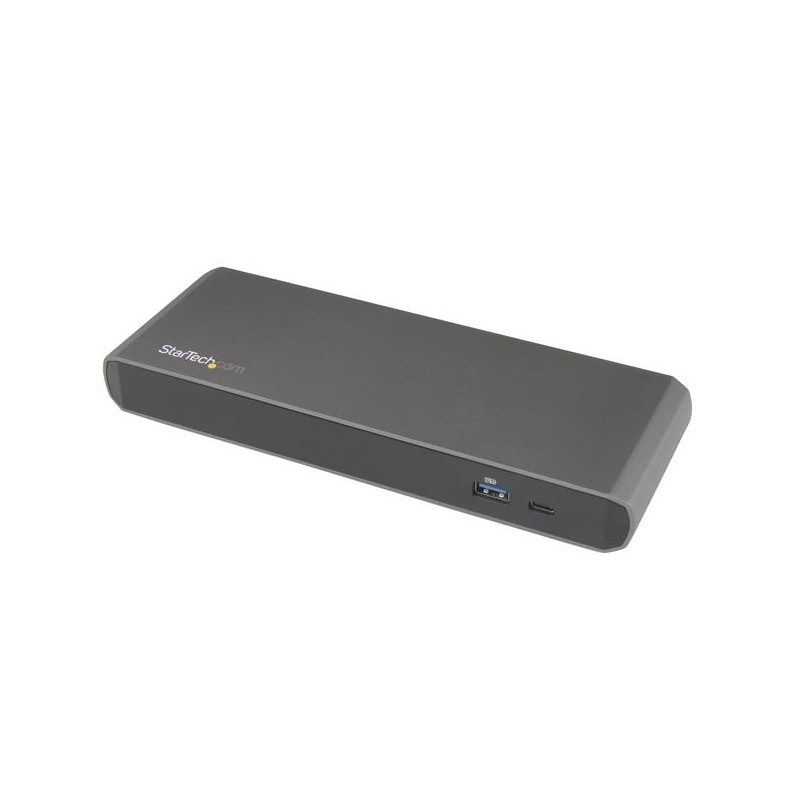

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
  • StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P
This cost-effective Thunderbolt™ 3 dock (without Power Delivery) supports your Thunderbolt 3 port equipped MacBook Pro or Windows® based laptop. Plus, the dock supports dual monitors, so you can easily connect two 4K Ultra HD (up to 60Hz) displays (one DisplayPort and one Thunderbolt 3 USB-C™ port), or a single Thunderbolt 3 display (60Hz).



Merging performance with simplicity, this high-quality dock is a single-cable solution that caters to creative professionals such as video producers, graphic and web designers, engineers, architects, and many more.



Finish your work faster with Thunderbolt 3

You can quickly integrate the dock into your workspace and boost your productivity. With up to 40Gbps of throughput, you can add extra displays to your laptop, access files faster, and reduce waiting, so you can accomplish more in the same amount of time.



Thunderbolt 3 is the fastest connection available, and it supports multiple video channels and data, without impacting system performance. It’s easy to access and edit large uncompressed files such as videos and images on the fly.



Multitask at the highest resolution

If you need a larger, higher-resolution viewing area, this dock can help. You can connect two 4K Ultra HD displays, so it’s perfect for anyone working with high-bandwidth or graphics-intensive content.



The Thunderbolt 3 dock supports two 4K (3840 x 2160p) monitors at up to 60Hz through the DisplayPort and Thunderbolt 3 USB-C port (USB-C video adapter might be required). For dual monitors, simply connect your DP monitor, and a second monitor through the dock’s extra Thunderbolt 3 port using an adapter such as the USB-C to DisplayPort Adapter Cable (CDP2DPMM1MB - sold separately) or using a USB-C based monitor. The Thunderbolt dock will also work with legacy displays such as VGA monitors when coupled with a USB-C to VGA adapter.



With support for two 4K monitors, the Thunderbolt dock makes it easier to multitask when you’re working with high-definition video or other complex work.



For advanced 5K resolutions requirements, this dock supports a single 5K display when you connect your monitor to one of the Thunderbolt 3 ports, delivering 5120 x 2880p resolutions at up to 60Hz.



Connect your peripherals using only a single cable

Using the single Thunderbolt 3 cable (included) and a single port on your laptop, you can transform your macOS Sierra (or later) or Windows® 7 (or later) laptop into a full-size workstation with access to new and legacy technologies through a number of different port types. The dock is ideal for virtually all Thunderbolt 3 equipped laptops such as the Dell™ XPS 13, and the Apple MacBook Pro (2016).



The Thunderbolt 3 docking station features two Thunderbolt 3 USB-C ports for connecting to Thunderbolt devices and other peripherals that use the USB-C connector, as well as DisplayPort video output.



Convenient connections prepare you for the future

You can keep your mobile device charged and ready to go using the dock’s convenient, always-on USB fast-charge and sync port which supports USB Battery Charging Specification 1.2. The Thunderbolt 3 dock offers a variety of other connections that are often missing from port-limited laptops, such as an extra USB-C port (5Gbps - data only), and a Gigabit Ethernet port.



With three USB 3.0 ports in total, you have plenty of ports to connect modern and legacy devices. (USB 3.0 is also known as USB 3.1 Gen 1.) Now, you can rest assured knowing you’re ready for the current and next generation of universal connectivity.



The rear-panel DP and USB-C ports can be used with dual monitors that support lower resolutions, such as 4K at 30Hz or 1080p. StarTech.com offers a variety of USB-C video adapters, such as USB-C to HDMI and USB-C to VGA, which lets you connect a mixture of modern and legacy displays to the docking station.



Please note: 5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work with this docking station.



Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).



The TB3DKDPMAWUE features a rugged aluminum casing, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.



Your computer’s Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:



- BIOS

- Thunderbolt firmware

- Thunderbolt 3 controller drivers

- Thunderbolt 3 software



The required updates will vary depending on your computer.
AC adapter includedYes
AC input voltage100-240 V
Auto MDI/MDI-XYes
Cables includedAC,Thunderbolt
CertificationCE, FCC
ChipsetIntel - Alpine Ridge DSL6540, Fresco Logic - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT
Colour of productBlack,Grey
Combo headphone/mic portNo
Compatible power plug typesEU,UK
Connectivity technologycable
Data transfer rate40 Gbit/s
DC-in jackYes
Depth220 mm
DisplayPorts quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexYes
Headphone connectivity3.5 mm
Headphone outputs1
Height27 mm
Host interfaceThunderbolt 3
Input current1.5 A
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.12 Sierra
ManualYes
MaterialAluminium,Plastic
Maximum digital resolution5120 x 2880 pixels
Microphone inYes
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of microphone inputs1
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)5 - 40 °C
Output current6 A
Output voltage12 V
Package depth250 mm
Package height114 mm
Package weight1200 g
Package width134 mm
Plug typeType N (BR)
Power consumption (typical)72 W
RoHS complianceYes
Storage temperature (T-T)-40 - 70 °C
UASP supportYes
Weight442 g
Width80 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
USB 3.0 (3.1 Gen 1) Type-A ports quantity2
USB 3.0 (3.1 Gen 1) Type-C ports quantity1
Thunderbolt 3 ports quantity2

TB3DKDPMAWUE.pdf

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - 5K Support - Thunderbolt 3 Dock for MacBook P Data Sheet

Download (279.58k)
