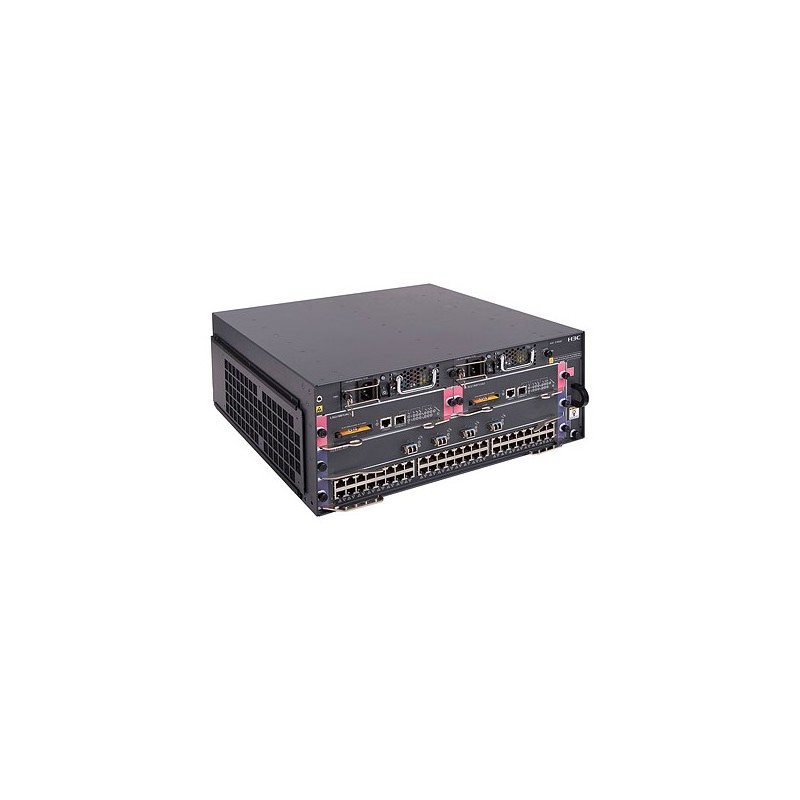

The HP 7500 Switch Series is a versatile modular switch designed to meet the evolving needs of integrated services networks. It can be deployed at the enterprise LAN core, aggregation layer and wiring closet edge and offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high density PoE/PoE+, advanced functionality with service modules and BYOD-ready features with the wired-WLAN module.

With HP Intelligent Resilient Fabric (IRF) technology, the HP 7500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.

Acoustic pressure emissions	49.8 dB
Depth	420 mm
Dimensions (WxDxH)	420 x 436 x 175 mm
Electromagnetic compatibility	VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Electromagnetic immunity	ETSI EN 300 386 V1.3.3; EN 61000-4-2:1995+A1:1998+A2:2001; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; IEC 61000-4-8; EN 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Fan trays	1 x JD213A
Form factor	4U height
Height	175 mm
I/O ports	2 MPU (for management modules) slots; 2 I/O module slots; Supports a maximum of 16 10-GbE ports or 96 autosensing 10/100/1000 ports or 96 SFP ports, or a combination
Input current	5/10 A
Input frequency	50 / 60 Hz
Input voltage	100-120/200-240 VAC; -48 - -60(depending on power ↑ply choen)
MAC address table	512000 entries
Management platform	IMC - Intelligent Management Center Command-line interface Web browser Out-of-band management (serial RS-232C) SNMP manager Telnet Terminal interface (serial RS-232C) Modem interface IEEE 802.3 Ethernet MIB Ethernet interface MIB
Memory and processor	Fabric : MIPS64 @ 600 MHz, 64 MB flash, 512 MB RAM I/O module : MIPS64 @ 400 MHz, 512 MB RAM I/O module : MIPS64 @ 1000 MHz, 1 GB RAM
Mounting	Mounts in an EIA-standard 19 in. rack or other equipment cabinet (hardware included); horizontal surface mounting only
Operating relative humidity range	10 to 95 %
Operating temperature range (T-T)	0 - 45 °C
Output power	300 W
Power requirements	Based on common power supply 300 W (AC/DC)
Rack capacity	4U
Safety	UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11
Source data-sheet	Icecat.biz
Storage temperature range (T-T)	-40 - 70 °C
Switching capacity	1920 Gbit/s
Throughput	966
Weight	26760 g
Width	436 mm
