10G support | No |
AC input voltage | 100-240 V |
Auto MDI/MDI-X | Yes |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Broadcast storm control | Yes |
Colour of product | Grey |
Combo SFP ports quantity | 2 |
Console port | RJ-45 |
Depth | 160 mm |
Dimensions (WxDxH) | 439.9 x 160 x 43.7 mm |
Electromagnetic compatibility | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN |
Fast Ethernet (copper) ports quantity | 24 |
Flash memory | 16 MB |
Flow control support | Yes |
Form factor | 1U |
Full duplex | Yes |
Gigabit Ethernet (copper) ports quantity | 2 |
Heat dissipation | 44 BTU/h |
Height | 43.7 mm |
I/O ports | 2 dual-personality 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 24 autosensing 10/100 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u |
IGMP snooping | Yes |
Input frequency | 50 - 60 Hz |
Input voltage | 100 - 240 V |
Internal memory | 128 MB |
IP address table | 16 |
Latency | 100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs |
Latency (1 Gbps) | 5 µs |
Latency (10-100 Mbps) | 6 µs |
Link aggregation | Yes |
MAC address filtering | Yes |
MAC address table | 8192 entries |
Management platform | IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager |
Memory and processor | storage: 128 MB SDRAM, 16 MB flash, packet buffer size: 384 KB |
Memory type | B SDRAM |
Mounting | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included) |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Number of VLANs | 4094 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating relative humidity range | 10 to 90 % |
Operating temperature (T-T) | 0 - 45 °C |
Operating temperature range (T-T) | 0 - 45 °C |
Packet buffer memory | 0.3 MB |
Power consumption (typical) | 13 W |
Power over Ethernet (PoE) | No |
Power supply included | Yes |
Quality of Service (QoS) support | Yes |
Rack mounting | Yes |
Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
Size | 439.9 mm (17.32 ") |
Stackable | Yes |
Static port security | Yes |
Storage relative humidity (H-H) | 5 - 95 % |
Storage relative humidity range | 5 to 95 % |
Storage temperature (T-T) | -40 - 70 °C |
Storage temperature range (T-T) | -40 - 70 °C |
Switch layer | L2/L3 |
Switch type | Managed |
Switching capacity | 8.8 Gbit/s |
Throughput | 6.6 Mpps |
VLAN support | Yes |
Weight | 3000 g |
Width | 439.9 mm |

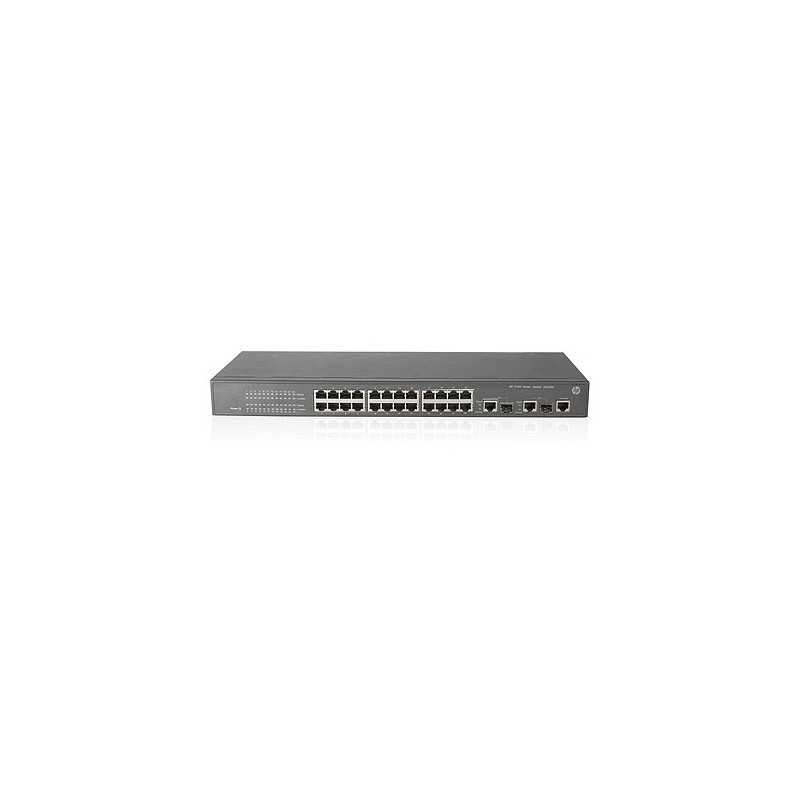

3100-8 v2 SI - 24x 10/100, 2x 10/100/1000
JG223A
Out of Stock
