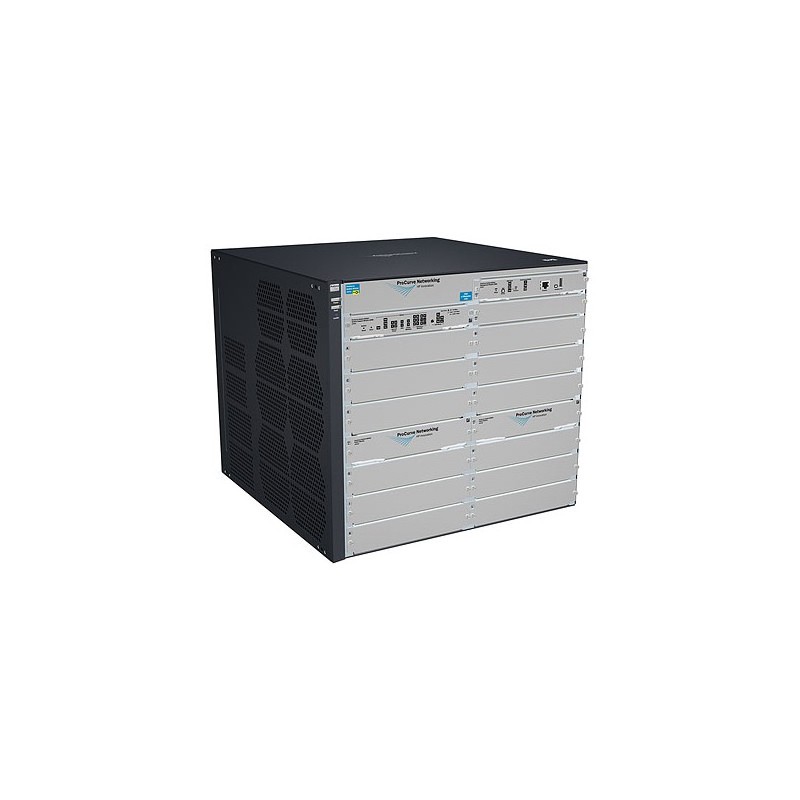

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software

More Info
Details

Overview

The HP 8200 zl Switch Series offers high performance, scalability, and a wide range of features in a high-availability platform that dramatically reduces complexity and provides reduced cost of ownership. As part of a unified wired and wireless network infrastructure solution, the 8200 zl Switch Series provides platform technology, system software, system management, application integration, wired and wireless integration, network security, and support that are common across HP modular and fixed-port switches. Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl Switch Series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments. It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.

10G support	Yes
AC input frequency	50/60 Hz
AC input voltage	100-127 V
Acoustic pressure emissions	Power: 63, Pressure: 47.8, ISO 7779, ISO 9296 dB
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	96
Colour of product	Black
Connectivity technology	Wired
Console port	RS-232
Depth	475 mm
Dimensions (WxDxH)	475 x 444.5 x 396.2 mm
Electromagnetic compatibility	FCC, ICE, VCCI, EN
Electromagnetic immunity	EN 55024, CISPR 24; IEC 61000-4-2; 4 kV CD, 8 kV AD; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reduction, 0.5
Energy Star certified	No
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Fiber optic connector	SFP
Flow control support	Yes
Form factor	19U
Full duplex	Yes
Heat dissipation	4900 BTU/h
Heat dissipation note	(max. non-PoE); 7400 BTU/hr (7807 kJ/hr) (max. PoE)
Height	392.6 mm
I/O ports	92 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 2 SFP+ 10-GbE por
Input frequency	50 - 60 Hz
Input voltage	100-127/200-240 VAC
Latency	3.7
LED indicators	Power
Link aggregation	Yes
MAC address table	64000 entries
Management platform	HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Management protocols	SNMPv1/v2c/v3
Maximum data transfer rate	1 Gbit/s
Memory and processor	Gigabit Module: ARM9 @ 200 MHz, packet buffer size: 144 Mb QDR SDRAM; 10G Module: ARM9 @ 200 MHz, packet buffer size: 36 Mb QDR SDRAM; Management Module: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM
Mounting	Mounts in an EIA-standard 19 in telco rack or equipment cabinet (hardware included); horizontal surface mounting only. An optional 4-post cabinet rail is available (see ordering guide).
Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3x
Noise level	63 dB
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	15 - 95 %
Operating relative humidity range	15 to 95 @ 131°F
Operating temperature (T-T)	0 - 45 °C
Operating temperature range (T-T)	0 - 45 °C
Power over Ethernet (PoE)	Yes
Power requirements	Chassis ships without power supplies. Four power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Power supplies must be ordered separately. A minimum of two J8712A, J8713A
Power supply type	2 x J9306A
Rack mounting	Yes
Safety	CSA, UL, IEC, EN
SFP/SFP+ slots quantity	2
Source data-sheet	Icecat.biz
Spanning tree protocol	Yes
Stackable	No
Storage relative humidity range	15 to 95 @ 149°F
Storage temperature range (T-T)	-40 - 70 °C
Supported data transfer rates	10/100/1000 Mbps
Supported network protocols	RFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfig
Switch fabric speed	1.1 Tbps
Switch layer	L3+
Switch type	Managed
Switching capacity	993.6 Gbit/s
Throughput	739 Mpps
Weight	46610 g
Width	444.5 mm
SFP+ module slots quantity	2
