The Cisco® Small Form-Factor Pluggable (SFP), Enhanced Small Form-Factor Pluggable (SFP+), and X2 devices for use on the Cisco MDS 9000 Family of products are hot-swappable transceivers that plug into ports on the Cisco MDS 9000 Family director switching modules and fabric switches. These transceivers give users the flexibility to choose different cabling types and distances on a port-by-port basis.

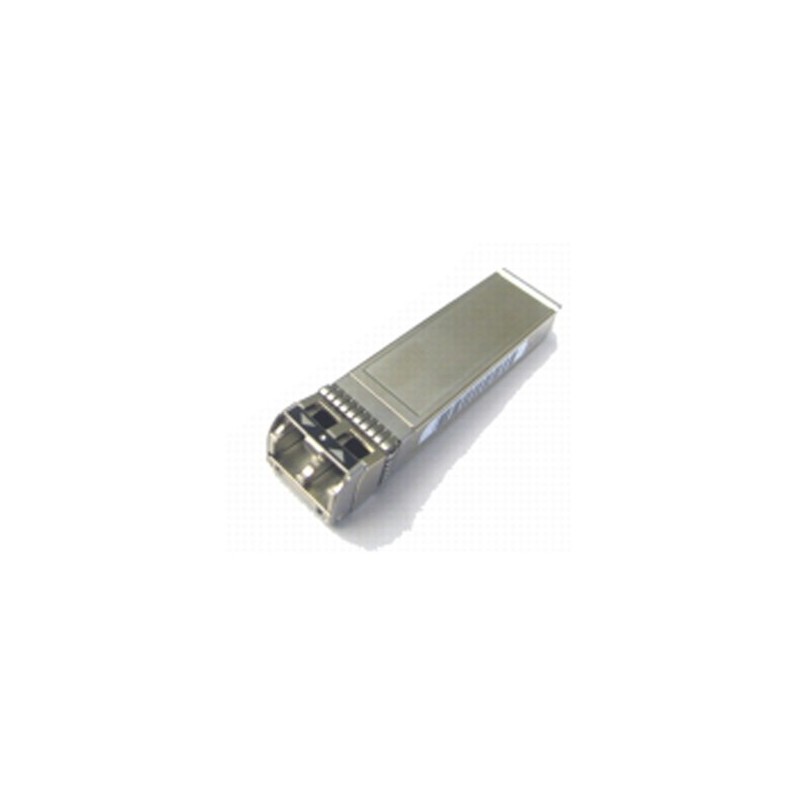

Cisco 8-Gbps Fibre Channel SFP+
The Cisco 8-Gbps Fibre Channel SFP+ is designed to provide Fibre Channel connectivity for the 2/4/8-Gbps ports on the Cisco MDS 9000 Family platform. Two types of Cisco 8-Gbps Fibre Channel SFP+ are available: the Cisco Fibre Channel Shortwave SFP+ (part number DS-SFP-FC8G-SW) and the Cisco Fibre Channel Longwave SFP+ (part number DS-SFP-FC8G-LW). Each product offers 2/4/8-Gbps autosensing Fibre Channel connectivity.
Cisco 8-Gbps Fibre Channel SFP+
The Cisco 8-Gbps Fibre Channel SFP+ is designed to provide Fibre Channel connectivity for the 2/4/8-Gbps ports on the Cisco MDS 9000 Family platform. Two types of Cisco 8-Gbps Fibre Channel SFP+ are available: the Cisco Fibre Channel Shortwave SFP+ (part number DS-SFP-FC8G-SW) and the Cisco Fibre Channel Longwave SFP+ (part number DS-SFP-FC8G-LW). Each product offers 2/4/8-Gbps autosensing Fibre Channel connectivity.
| Cable type | Multi-mode |
| Colour of product | Stainless steel |
| Compatible products | Cisco MDS 9000 |
| Connectivity technology | Wired |
| Data transfer rate (max) | 8000 Mbit/s |
| Depth | 55.2 mm |
| Dimensions (WxDxH) | 13.55 x 56.5 x 8.5 mm |
| Ethernet LAN | No |
| Fiber cable diameters supported | 62.5, 50 µm |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Fiber type | mm |
| Form factor | SFF |
| Height | 13.75 mm |
| Hot-swap | Yes |
| Interface | LC (1.25mm) |
| Interface type | SFP+ |
| Number of products included | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Power budget | 2.04 dB |
| SFP transceiver type | SW |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 10 - 85 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage temperature range (T-T) | -40 - 85 °C |
| Transmit power | -1.3 dBmW |
| Tx power (max) | -1.3 dBmW |
| Tx power (min) | -8.2 dBmW |
| Wavelength | 850 nm |
| Width | 8.5 mm |
