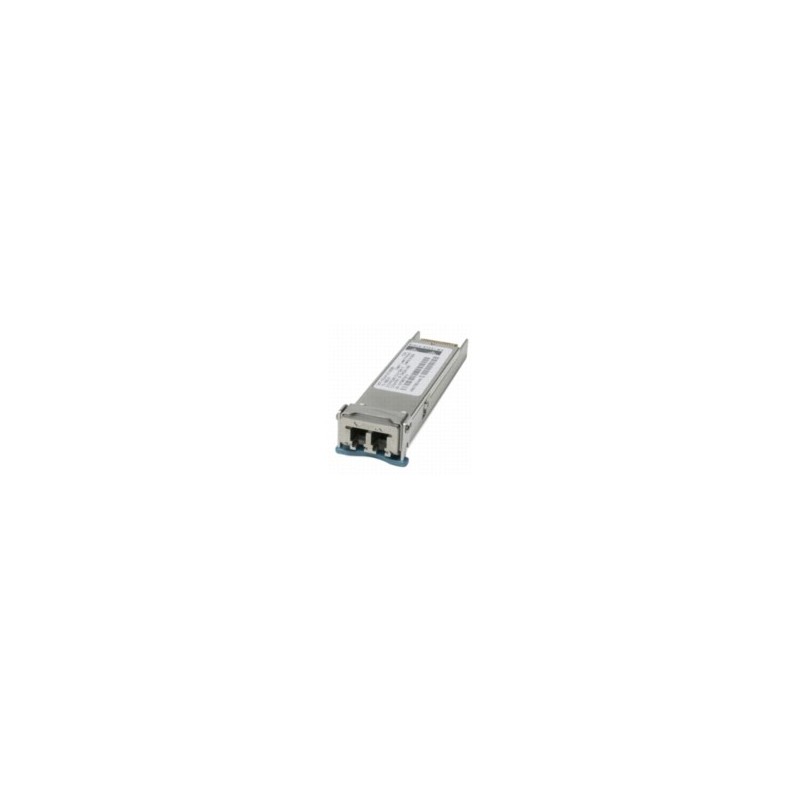

The Cisco® Dense Wavelength-Division Multiplexing (DWDM) XFP pluggable module (Figure 1) allows enterprise companies and service providers to provide scalable and easy-to-deploy 10 Gigabit LAN or WAN services in their networks.
Main features of the Cisco DWDM XFP include:
- The Cisco DWDM XFP supports 10-Gigabit data rates from 9.9G to 11.1G.
- The hot-swappable input/output device plugs into an Ethernet XFP port of a Cisco switch or router to link the port with the network.
- The Cisco DWDM XFP supports the Cisco quality identification (ID) feature, which enables a Cisco switch or router to identify whether or not the module is an XFP module certified and tested by Cisco.
- The standard Cisco DWDM XFP supports 32 nontunable ITU 100-GHz wavelengths.
- The tunable Cisco DWDM XFP supports 80 tunable ITU 50-GHz wavelengths.
- Cisco DWDM XFP modules supports digital optical monitoring capability.
Main features of the Cisco DWDM XFP include:
- The Cisco DWDM XFP supports 10-Gigabit data rates from 9.9G to 11.1G.
- The hot-swappable input/output device plugs into an Ethernet XFP port of a Cisco switch or router to link the port with the network.
- The Cisco DWDM XFP supports the Cisco quality identification (ID) feature, which enables a Cisco switch or router to identify whether or not the module is an XFP module certified and tested by Cisco.
- The standard Cisco DWDM XFP supports 32 nontunable ITU 100-GHz wavelengths.
- The tunable Cisco DWDM XFP supports 80 tunable ITU 50-GHz wavelengths.
- Cisco DWDM XFP modules supports digital optical monitoring capability.
| Connectivity technology | Wired |
| Connector(s) | LC/PC |
| Data transfer rate (max) | 10000 Mbit/s |
| Dimensions (WxDxH) | 18.5 x 71 x 8.5 mm |
| Hot-swap | Yes |
| Interface | XFP |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating temperature range (T-T) | 0 - 70 °C |
| Plug and Play | Yes |
| Power consumption (typical) | 3.5 W |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage temperature range (T-T) | -40 - 85 °C |
| Wavelength | 1560.61 nm |
| Weight | 300 g |
Similar products
-
Cisco DS-SFP-GE-T
-
Cisco OC-3/STM-1 Pluggable Multi-Mode...
-
Cisco 10 Gigabit Ethernet ZR (80 km) Optics
-
Cisco CWDM 1550 NM SFP Gigabit Ethernet...
-
Cisco OC-3/STM-1 SFP, SM, IR-1
Cisco DWDM XFP
10GBASE-DWDM 1560.61 nm XFP (100-GHz ITU grid)
DWDM-XFP-60.61=
Stock Due 01-06-2025
£15,020.16
£12,516.80 Ex VAT.
