Cisco 1470 nm CWDM 1/2/4-Gbps Fibre Channel SFP
The Cisco® Small Form-Factor Pluggable (SFP), Enhanced Small Form-Factor Pluggable (SFP+), and X2 devices for use on the Cisco MDS 9000 family of products are hot-swappable transceivers that plug into ports on the Cisco MDS 9000 family director switching modules and fabric switches. These transceivers give users the flexibility to choose different cabling types and distances on a port-by-port basis.



Cisco Coarse Wavelength-Division Multiplexing Extended Distance SFP Solution

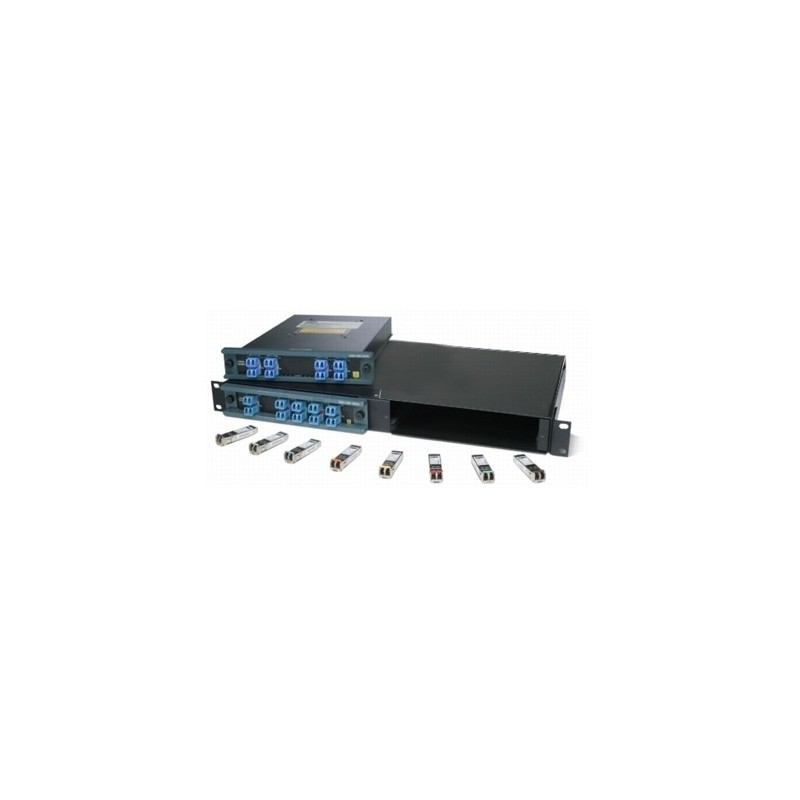

The Cisco MDS 9000 family offers cost-effective multiprotocol extended distance connectivity that optimizes the use of a customer's existing optical infrastructure through the Cisco Coarse Wavelength-Division Multiplexing (CWDM) SFP solution. The Cisco CWDM SFP solution has two main components: a set of eight wavelength-specific SFPs and a set of CWDM optical add-drop modules (OADMs). A Cisco CWDM chassis enables rack-mounting of up to two Cisco CWDM OADMs. The Cisco CWDM OADMs are passive and require no power or configuration.



The Cisco CWDM SFP solution enables the transport of up to eight channels over one pair of single-mode fiber strands, enabling enterprises to increase the bandwidth of an existing optical infrastructure without adding new fiber strands. The solution can be used in parallel with other Cisco SFP devices on the same platform.



Cisco 4-Gbps CWDM SFPs

-In typical point-to-point deployments, all wavelengths have a minimum reach of 40 km (24.8 mi).

-Parameters are specified over temperature and at end of life unless otherwise noted.

-When shorter distances of single-mode fiber are used, you may need to insert an inline optical attenuator in the link to avoid overloading the receiver.

-Up to 24 Cisco 4-Gbps CWDM SFP Transceivers are supported in a single Cisco MDS 9000 family switching module.

-When interoperating a Cisco 4-Gbps CWDM SFP Transceiver with a Cisco 1/2-Gbps CWDM SFP Transceiver, you must manually configure the port speeds on the Cisco 4-Gbps CWDM SFP Transceiver to 1 or 2 Gbps.
Cable typeSingle-mode
Colour of productGrey,Stainless steel
Compatible productsCisco MDS 9000
Connectivity technologyWired
Connector(s)LC-LC
Data transfer rate (max)4000 Mbit/s
Depth56.64 mm
Dimensions (WxDxH)13.27 x 56.64 x 8.46 mm
Fiber optic connectorLC
Fiber ports quantity1
Height8.46 mm
Hot-swapYes
InterfaceSFP
Interface typeSFP
Maximum transfer distance40000 m
Number of products included1 pc(s)
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Plug and PlayYes
SFP transceiver typeCWDM
Storage temperature (T-T)-40 - 85 °C
Storage temperature range (T-T)-40 - 85 °C
Wavelength1470 nm
Width13.27 mm

Similar products

  • Cisco DS-SFP-GE-T
    Cisco DS-SFP-GE-T
  • Cisco OC-3/STM-1 Pluggable Multi-Mode Fibre (2 km) Transceiver Module multi-mode fibre
    Cisco OC-3/STM-1 Pluggable Multi-Mode...
  • Cisco 10 Gigabit Ethernet ZR (80 km) Optics
    Cisco 10 Gigabit Ethernet ZR (80 km) Optics
  • Cisco CWDM 1550 NM SFP Gigabit Ethernet and 1G/2G FC
    Cisco CWDM 1550 NM SFP Gigabit Ethernet...
  • Cisco OC-3/STM-1 SFP, SM, IR-1
    Cisco OC-3/STM-1 SFP, SM, IR-1

Cisco DS-CWDM4G1470

1470 nm CWDM 1/2/4-Gbps Fibre Channel SFP, Gray, Spare

DS-CWDM4G1470=

Out of Stock

£6,105.50
£5,087.92 Ex VAT.
