The Cisco® Dense Wavelength-Division Multiplexing (DWDM) Small Form Factor Pluggable (SFP) module allow enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet or Fibre Channel services in their networks.
Main features of the Cisco DWDM SFP include:
- Support for International Telecommunication Union (ITU) 100-GHz wavelength grid
- Match for wavelength plan of Cisco 100-GHz ONS product family
- Fixed-wavelength SFP, with 40 different SFP models
- Hot-swappable input/output device that plugs into Gigabit Ethernet SFP ports or slots of a Cisco switch or router, linking the port with the network
Main features of the Cisco DWDM SFP include:
- Support for International Telecommunication Union (ITU) 100-GHz wavelength grid
- Match for wavelength plan of Cisco 100-GHz ONS product family
- Fixed-wavelength SFP, with 40 different SFP models
- Hot-swappable input/output device that plugs into Gigabit Ethernet SFP ports or slots of a Cisco switch or router, linking the port with the network
| Cabling technology | 1000BASE-X |
| Compliance industry standards | IEEE 802.3z |
| Connectivity technology | Wired |
| Connector(s) | LC/PC |
| Data transfer rate (max) | 2000 Mbit/s |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
| Form factor | SFP |
| Full duplex | Yes |
| Hot-swap | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating temperature range (T-T) | 0 - 70 °C |
| Plug and Play | Yes |
| Power budget | 28 dB |
| Power requirements | 300mA, 3.3V |
| Safety | Laser Class I 21CFR1040 LN#50 7/2001, Laser Class I IEC 60825-1 |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage temperature range (T-T) | -40 - 85 °C |
| Wavelength | 1554.94 nm |
| Weight | 75 g |
Similar products
-
Cisco DS-SFP-GE-T
-
Cisco OC-3/STM-1 Pluggable Multi-Mode Fibre (2 km) Transceiver Module multi-mode fibre
-
Cisco 10 Gigabit Ethernet ZR (80 km) Optics
-
Cisco CWDM 1550 NM SFP Gigabit Ethernet and 1G/2G FC
-
Cisco OC-3/STM-1 SFP, SM, IR-1

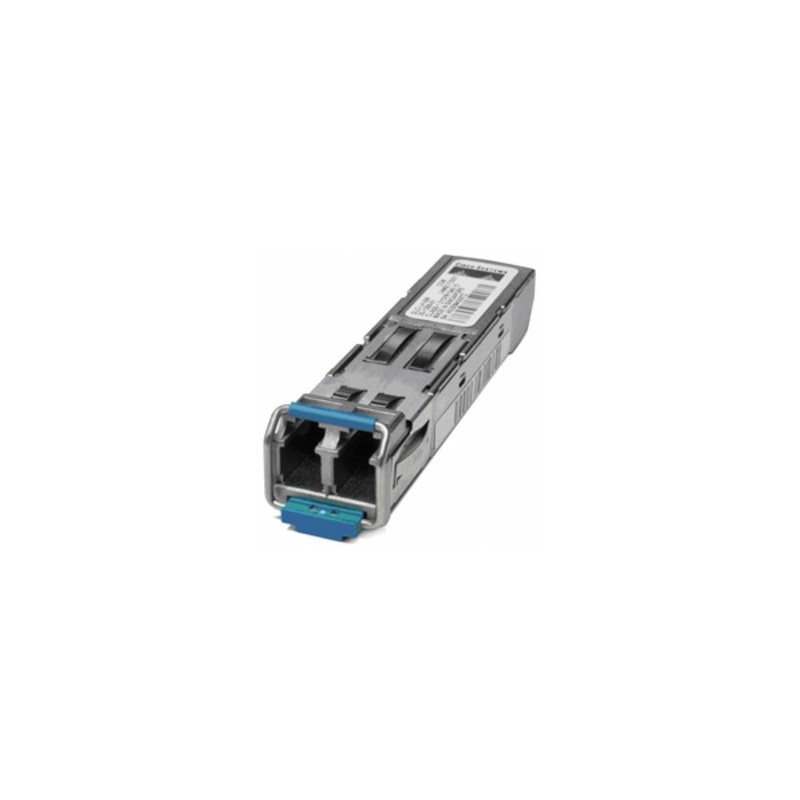

Cisco DWDM SFP
1000BASE-DWDM 1554.94 nm SFP (100-GHz ITU grid)
DWDM-SFP-5494=
Out of Stock
£4,973.24
£4,144.37 Ex VAT.
