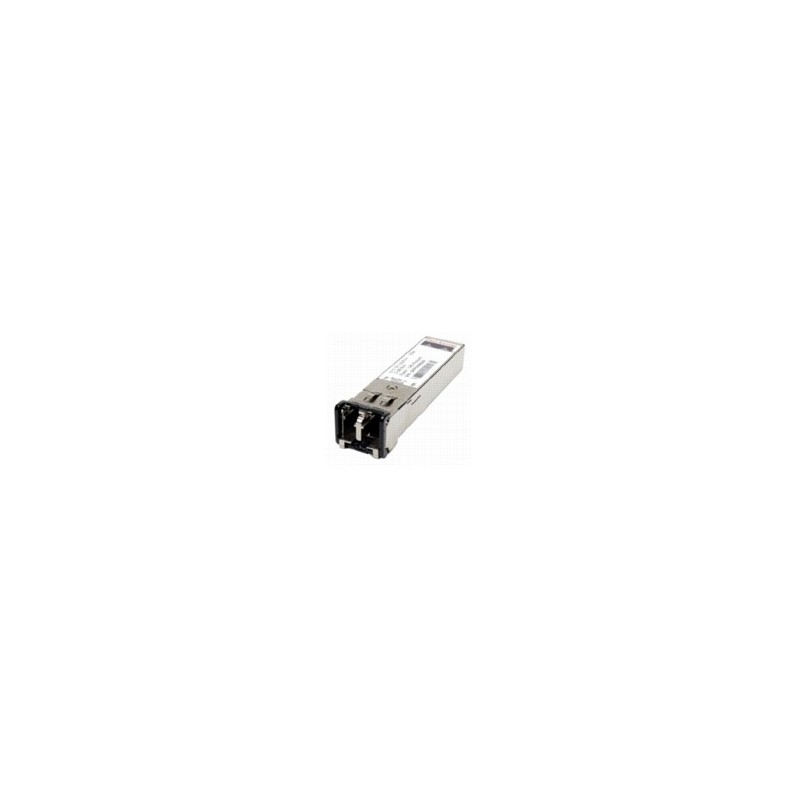

Cisco GLC-FE-100FX48 network media converter

More Info
Details
Spec Sheet

The Cisco® 100BASE-X Small Form-factor Pluggable (SFP) is a hot-swappable input/output device that plugs into a Fast Ethernet port or slot, linking the port with the network.

Main features include the following:

-Hot-swappable when deployed, the switch or router does not have to reboot.

-Supports the "pay-as-you-populate" model.

-Interchangeable with other 100BASE-X SFPs on the same line card.

-Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP.

-Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link.

Cisco 100BASE-FX SFP

The Cisco 100BASE-FX SFP (part numbers GLC-FE-100FX and GLC-FE-100FX-RGD) operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers long.

Cabling technology	100BASE-X
Connectivity technology	Wired
Data transfer rate (max)	100 Mbit/s
Dimensions (WxDxH)	13.4 x 56.5 x 8.5 mm
Fiber type	MMF
Interface	SFP
Maximum transfer distance	20000 m
Operating temperature (T-T)	0 - 70 °C
Operating temperature range (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Storage temperature range (T-T)	-40 - 85 °C
Transmit power	-14 - -20 dBmW
Wavelength	1310 nm
