AC input frequency | 50 - 60 Hz |
AC input voltage | 100-240 V |
Concurrent connections | 500000 |
Connectivity LEDs | Y |
Connectivity technology | Wired |
Dimensions (WxDxH) | 429 x 395 x 42.4 mm |
Ethernet LAN (RJ-45) ports | 9 |
Firewall throughput | 2000 Mbit/s |
Form factor | 1U |
Heat dissipation | 369 BTU/h |
Input current | 4.85 A |
Internal memory | 8192 MB |
IPS/IDS throughput | 600 Mbit/s |
Management protocols | HTTP, SMTP, FTP, IMAPv4, BitTorrent, DNS |
Maximum firewall connections per second | 20000 |
Noise level | 64.2 dB |
Non-operating altitude | 0 - 4572 m |
Number of users | 4000 user(s) |
Number of VLANs | 200 |
Number of VPN connections | 750 |
Operating altitude | 0 - 3050 m |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | -5 - 40 °C |
Peak power | 108 W |
Power consumption (typical) | 75 W |
Power LED | Y |
Rack mounting | Yes |
Serial ports quantity | 1 |
Solid-state drive capacity | 120 GB |
Storage media type | SSD |
Storage relative humidity (H-H) | 10 - 90 % |
Storage temperature (T-T) | -25 - 70 °C |
Total storage capacity | 120 GB |
USB 2.0 ports quantity | 2 |
VPN throughput | 300 Mbit/s |
WAN connection | Ethernet (RJ-45) |
Weight | 6770 g |

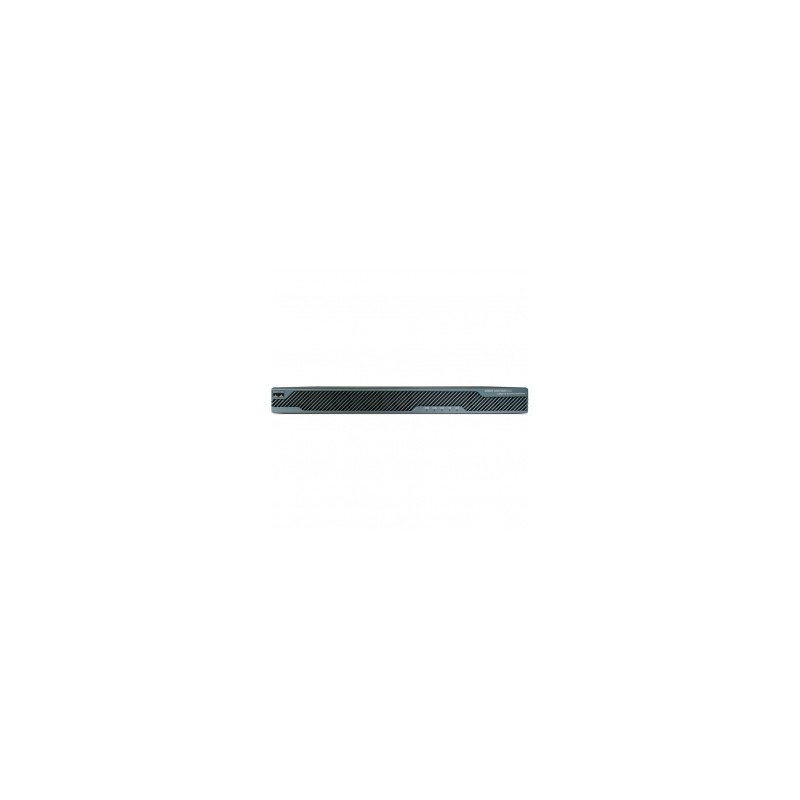

ASA 5525-X Firewall Edition - includes firewall services, 750 IPsec VPN peers, 2 SSL VPN peers, 8 copper GE data ports, 1 copper GE management port, 1 AC power supply, Active/Active high availability, 2 security contexts, 3DES/AES license, Ref
ASA5525-K9-RF
Out of Stock
