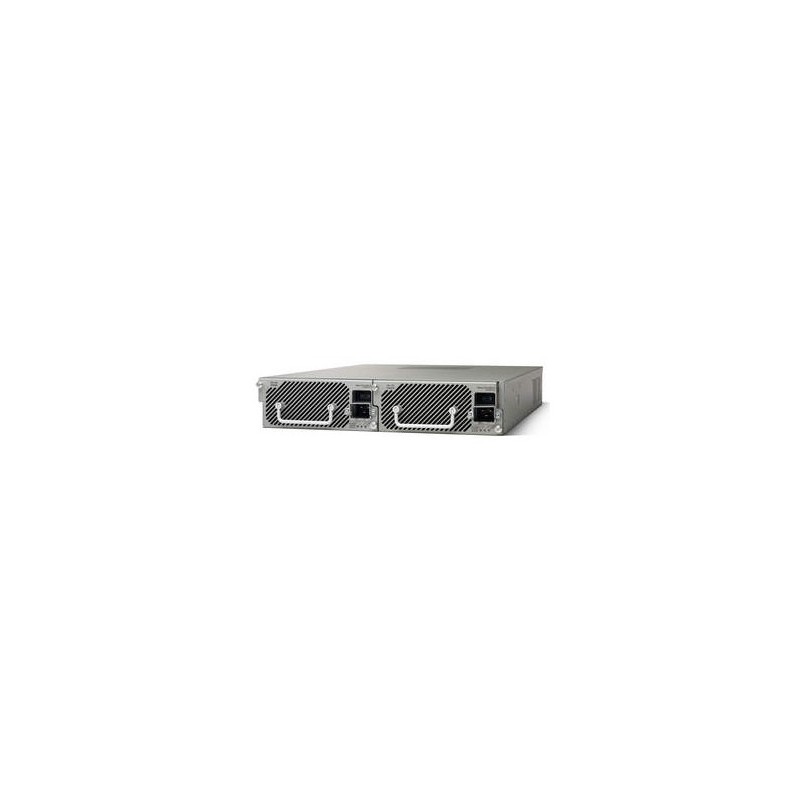

Cisco ASA5585-S20-K9 firewall (hardware)
Cisco® ASA 5500 Series Adaptive Security Appliances deliver a robust suite of highly integrated, market-leading security services for small and medium-sized businesses (SMBs), enterprises, service providers, and mission-critical data centers- in addition to providing unprecedented services flexibility, modular scalability, feature extensibility, and lower deployment and operations costs.



Cisco ASA 5585-X Adaptive Security Appliances are tailored to meet the high performance needs of mission-critical data centers and provide peace of mind with Cisco guaranteed coverage. Supporting the highest VPN session counts and twice as many connections per second as competitive firewalls in its class, Cisco ASA 5585-X appliances meet the growing needs of today's most dynamic organizations. The appliances combine the world's most proven firewall with the industry's most comprehensive, effective IPS, offering the most effective security solution in the industry to significantly decrease business risk and address regulatory compliance-all in a compact 2-rack-unit footprint.

There are four Cisco ASA 5585 models: the entry-level Cisco ASA 5585-X with Security Services Processor -10 (SSP-10) delivers 3 Gbps of multi-protocol firewall performance; the Cisco ASA 5585-X with SSP-20 provides 7 Gbps of multi-protocol firewall performance; the Cisco ASA 5585-X with SSP-40 delivers 12 Gbps of multi-protocol firewall performance; and the high-end Cisco ASA 5585-X with SSP-60 provides 20 Gbps of multi-protocol firewall performance.

All four ASA 5585-X models reliably deliver exceptional scalability to meet the demanding needs of mission-critical data centers. The Cisco ASA 5585-X appliances can support up to 10,000 concurrent VPN sessions, while delivering up to twice the connections per second and up to four times the session count of other firewalls at a similar throughput. The appliances also provide twice the efficacy and the most comprehensive threat coverage of any IPS.
Concurrent connections2000000
Connectivity technologyWired
Data transfer rate (max)1000 Mbit/s
Dimensions (WxDxH)483 x 673 x 88 mm
Electromagnetic compatibility47CFR 15 (CFR 47) A, AS/NZS CISPR22 A, CISPR2 2 A, EN55022 A, ICES003 A, VCCI A EN61000-3-2, EN61000-3-3, KN22 A, CNS13438 A, EN50082-1, EN55024, CISPR24, EN300386, KN 61000-4
Ethernet LAN (RJ-45) ports quantity8
Flash memory2048 MB
Form factor2 RU
Heat dissipation5450 BTU/h
Networking featuresEthernet, Fast Ethernet, Gigabit Ethernet
Non-operating altitude0 - 9144 m
Number of VLANs1024
Operating altitude0 - 3050 m
Operating relative humidity range10 - 90 %
Operating temperature range (T-T)0 - 40 °C
Power requirements100 - 240 V, 50/60 Hz
Power supply typeAC
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1GB4943
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-40 - 70 °C
USB 2.0 ports quantity2

Similar products

  • Cisco ASA 5585-X Security Plus Firewall Edition
    Cisco ASA 5585-X Security Plus Firewall...
  • Cisco ASA 5585-X Firewall Edition
    Cisco ASA 5585-X Firewall Edition
  • Cisco ASA 5545-X
    Cisco ASA 5545-X
  • Cisco ASA5540-MEM-2GB
    Cisco ASA5540-MEM-2GB
  • Cisco ASA5525-CU-K9
    Cisco ASA5525-CU-K9

Cisco ASA 5585-X Firewall Edition

ASA 5585-X Firewall Edition SSP-20 bundle includes 8 Gigabit Ethernet interfaces, 2 Gigabit Ethernet SFP interfaces, 2 Gigabit Ethernet management interfaces, 10000 IPsec VPN peers, 2 Premium VPN peers, 3DES/AES license

ASA5585-S20-K9

Out of Stock

£54,573.13
£45,477.61 Ex VAT.
