AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Certification | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR2 2 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, EN50082-1, EN55024, CISPR24, EN300386, KN 61000-4 Series |
Concurrent connections | 500000 |
Connectivity technology | Wired |
Data transfer rate (max) | 1000 Mbit/s |
Dimensions (WxDxH) | 483 x 673 x 88 mm |
Ethernet LAN (RJ-45) ports | 18 |
Firewall throughput | 3500 Mbit/s |
Flash memory | 8000 MB |
Form factor | 2u |
Gigabit Ethernet (copper) ports quantity | 16 |
Heat dissipation | 5450 BTU/h |
Internal memory | 12288 MB |
LED indicators | Yes |
Maximum firewall connections per second | 40000 |
Mobile VPN IPSec | 1700 |
Noise level | 65 dB |
Non-operating altitude | 0 - 9144 m |
Number of power supply units | 1 |
Number of VLANs | 1024 |
Operating altitude | 0 - 3050 m |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Rack mounting | Yes |
Redundant power supply (RPS) support | Yes |
Security algorithms | 3DES,AES |
Storage media type | Flash |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -40 - 70 °C |
Wi-Fi | No |
SFP+ module slots quantity | 4 |

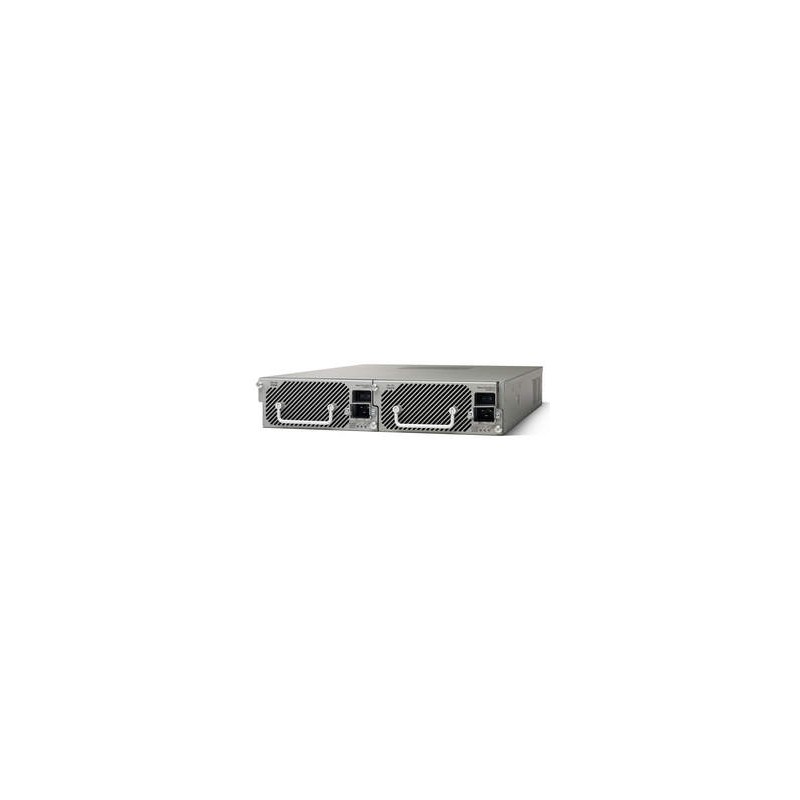

ASA 5585-X chassis with SSP-10, FirePOWER SSP-10, 16GE, 4SFP+, 1 AC, 3DES/AES
ASA5585-S10F10-K9
Out of Stock
