A key component of the Cisco SecureX Architecture®, the Cisco® ASA 5500 and 5500-X Next-Generation Firewall Series Adaptive Security Appliances integrate the world's most proven firewall with a robust suite of highly integrated, market-leading security services for networks of all sizes-small and midsize business with one or a few locations, large enterprises, service providers, and mission-critical data centers. The Cisco ASA 5500 and 5500-X Next-Generation Firewall Series deliver MultiScale™ performance with unprecedented services flexibility, including context-aware firewall capabilities, modular scalability, feature extensibility, and lower deployment and operations costs.



You need a firewall that meets small-office performance and cost needs yet delivers enterprise-strength security. The Cisco ASA 5500 and 5500-X Next-Generation Firewall Series were designed with this in mind. Available in a wide range of sizes and performance levels to fit your network, budget, and evolving security needs, all models deliver the same proven level of security that protects the networks of some of the largest and most security-conscious companies in the world. They also provide the visibility and control you need to take advantage of new applications and devices without compromising security.
AC input frequency50 - 60 Hz
AC input voltage100-240 V
CertificationIEC 60950-1: 2005, 2nd Edition\nEN 60950-1:2006+A11: 2009\nUL 60950-1:2007, 2nd Edition; \nCSA C22.2 No. 60950-1-07, 2nd Edition
Concurrent connections100000
Connectivity technologyWired
Dimensions (WxDxH)429 x 395 x 42.4 mm
Ethernet LAN (RJ-45) ports6
Firewall throughput1000 Mbit/s
Flash memory4000 MB
Form factor1U
Heat dissipation192 BTU/h
Input current4.85 A
Internal memory4096 MB
IPS/IDS throughput250 Mbit/s
Mobile VPN IPSec250
Mobile VPN SSL2
Non-operating altitude0 - 4572 m
Number of power supply units1
Number of VLANs100
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 40 °C
Peak power56 W
Power consumption (typical)51 W
Rack mountingYes
Security algorithms3DES,AES
Serial ports quantity1
Storage temperature (T-T)-25 - 70 °C
USB 2.0 ports quantity2
VPN throughput200 Mbit/s
Weight6070 g
Wi-FiNo
SFP module slots quantity6

ASA5512-K9-RF.pdf

Cisco ASA 5512-X Data Sheet

Download (563.62k)

Similar products

  • Cisco ASA 5585-X Security Plus Firewall Edition
    Cisco ASA 5585-X Security Plus Firewall...
  • Cisco ASA 5585-X Firewall Edition
    Cisco ASA 5585-X Firewall Edition
  • Cisco ASA 5545-X
    Cisco ASA 5545-X
  • Cisco ASA5540-MEM-2GB
    Cisco ASA5540-MEM-2GB
  • Cisco ASA5525-CU-K9
    Cisco ASA5525-CU-K9

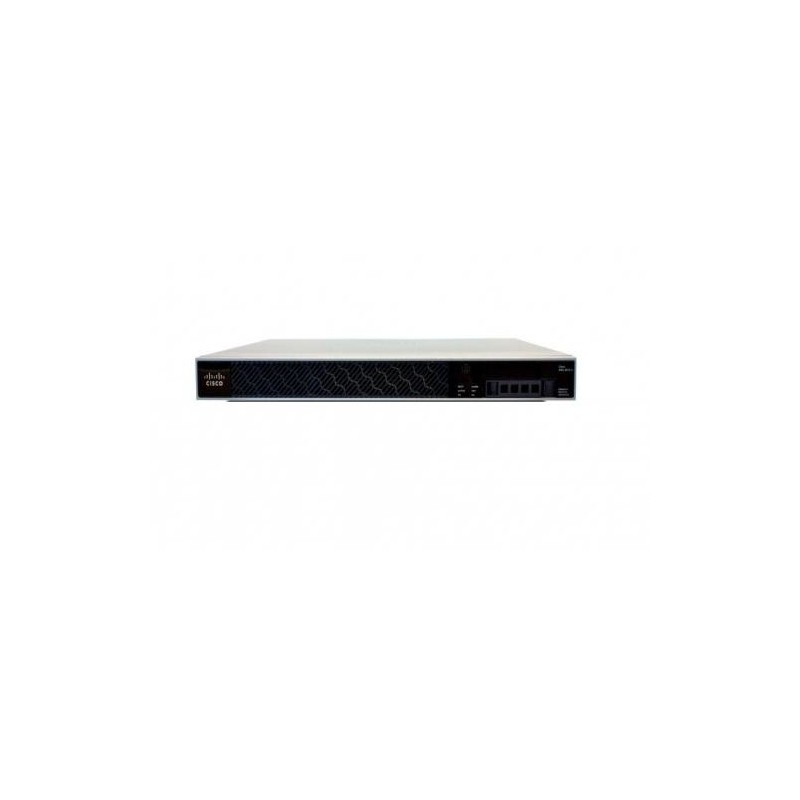

Cisco ASA 5512-X

ASA 5512-X Firewall Edition; includes firewall services, 250 IPsec VPN peers, 2 SSL VPN peers, 6 copper Gigabit Ethernet data ports, 1 copper Gigabit Ethernet management port, 1 AC power supply, 3DES/AES encryption, Remanufactured

ASA5512-K9-RF

In Stock

£1,706.16
£1,421.80 Ex VAT.
