Battery type | Lead-Acid |
Colour of product | Black, Silver |
Compatibility | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE |
Dimensions (WxDxH) | 472 x 688 x 572 mm |
Emergency Power Off (EPO) | Yes |
I/O ports | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) |
Input connection type | Hard Wire 3 wire (1PH+N+G) |
Interface | DB-9 RS-232, Smart-Slot |
Nominal input voltage | 230 V |
Nominal output voltage | 230 V |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating relative humidity range | 0 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19 |
Output power | 2800 W |
Output power capacity (VA) | 4000 VA |
Output voltage note | 220: 230, 240 |
Package dimensions (WxDxH) | 599 x 997 x 1054 mm |
Package weight | 166360 g |
Power supply input frequency | 45 - 65 Hz |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 0 - 95 % |
Storage relative humidity range | 0 - 95 % |
Storage temperature (T-T) | -15 - 45 °C |
Storage temperature range (T-T) | -15 - 45 °C |
Typical backup time at full load | 7.5 min |
Typical backup time at half load | 20 min |
Weight | 134090 g |
Output power capacity | 4000 VA |
Audible alarm(s) | Yes |

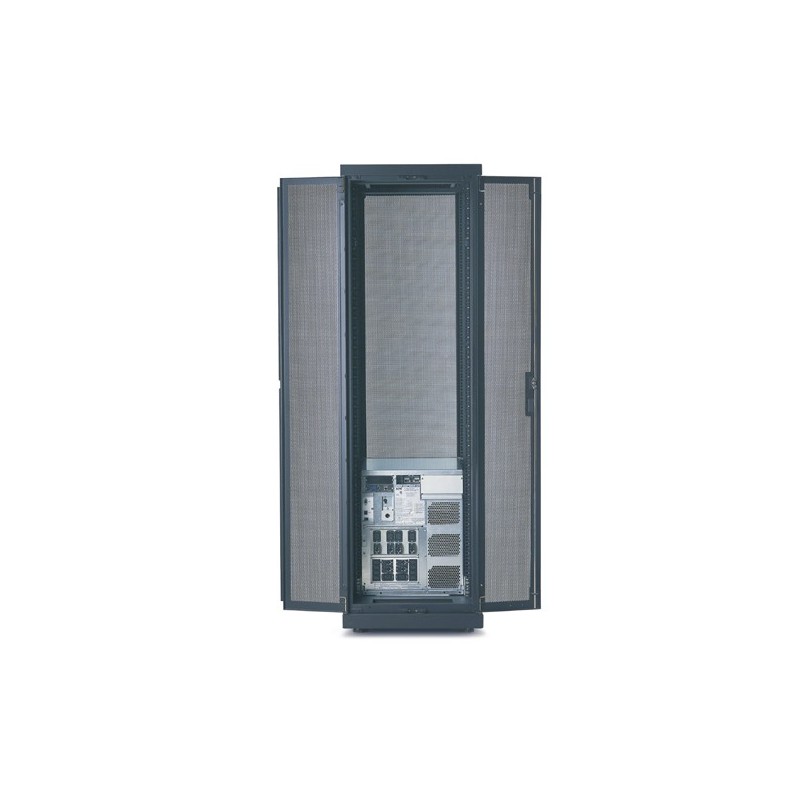

Symmetra LX rackmount 4- 8kVA 1+3-Faseblack 13U
SYA4K8RMI
Stock Due 01-03-2025
