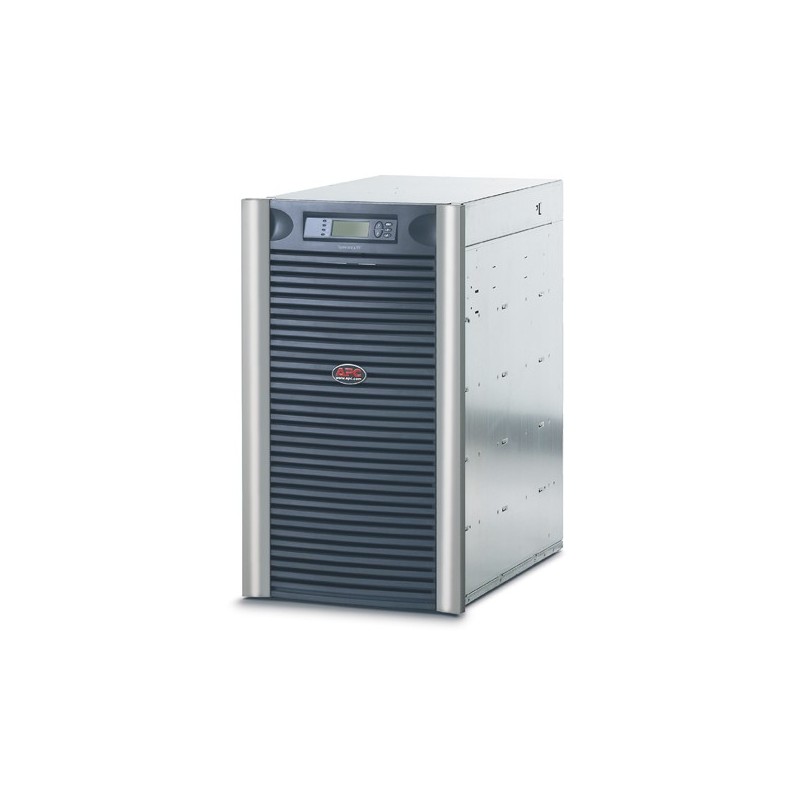

APC SYA12K16RMI uninterruptible power supply (UPS)
Industry’s most space-optimized modular UPS solutions

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Battery typeLead-Acid
Colour of productBlack, Silver
Dimensions (WxDxH)472 x 688 x 838 mm
Emergency Power Off (EPO)Yes
I/O ports(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
Input connection typeHard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
InterfaceDB-9 RS-232,Smart-Slot
Nominal input voltage230-400 V
Nominal output voltage230 V
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
Output power8400 W
Output power capacity (VA)12000 VA
Output voltage note220: 230, 240
Package dimensions (WxDxH)599 x 997 x 1054 mm
Package weight290000 g
Power supply input frequency45 - 65 Hz
Quantity per pallet1.00 pc(s)
Replacement battery cartridgeSYBT5
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Typical backup time at full load7.5 min
Typical backup time at half load20.2 min
Weight242.73 g
Output power capacity12000 VA
Audible alarm(s)Yes

Similar products

  • APC 60kW 400V MAIN SERV. BYPASS PANEL
    APC 60kW 400V MAIN SERV. BYPASS PANEL
  • APC 80KW 400V MAIN SERV. BYPASS PANEL
    APC 80KW 400V MAIN SERV. BYPASS PANEL
  • APC SY16K48H-PD
    APC SY16K48H-PD
  • APC Symmetra PX 32kW Scalable to 160kW, 400V
    APC Symmetra PX 32kW Scalable to 160kW, 400V
  • APC SY32K48H-PD
    APC SY32K48H-PD

APC SYA12K16RMI

APC Symmetra LX 12kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

SYA12K16RMI

Stock Due 01-03-2025

£16,647.37
£13,872.81 Ex VAT.
