Battery type | Lead-Acid |
Colour of product | Black, Silver |
Compatibility | C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE |
Dimensions (WxDxH) | 483 x 726 x 1516 mm |
Emergency Power Off (EPO) | Yes |
I/O ports | (1) Hard Wire 3-wire (H N + G) Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
Interface | DB-9 RS-232,Smart-Slot |
Nominal input voltage | 230-400 V |
Nominal output voltage | 230 V |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating relative humidity range | 0 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | (1) Hard Wire 3-wire (H N + G) |
Output power | 11200 W |
Output power capacity (VA) | 16000 VA |
Output voltage note | 220: 230, 240 |
Package dimensions (WxDxH) | 599 x 997 x 1880 mm |
Package weight | 535450 g |
Replacement battery cartridge | SYBT5 |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 0 - 95 % |
Storage relative humidity range | 0 - 95 % |
Storage temperature (T-T) | -15 - 45 °C |
Storage temperature range (T-T) | -15 - 45 °C |
Typical backup time at full load | 24.7 min |
Typical backup time at half load | 55.4 min |
Weight | 503640 g |
Output power capacity | 16000 VA |
Audible alarm(s) | Yes |

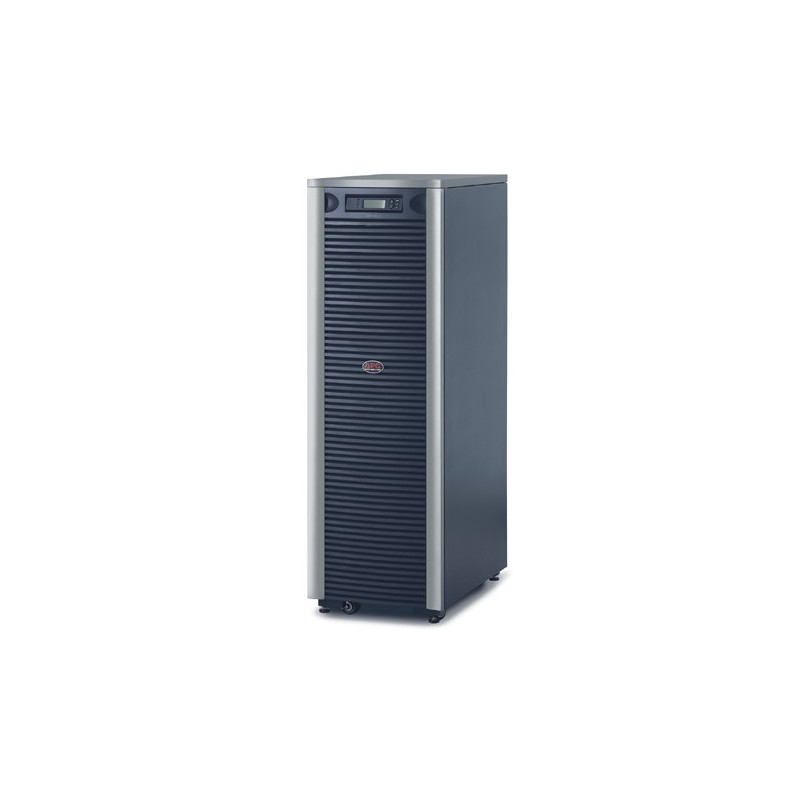

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V
SYA16K16IXR
Stock Due 01-02-2025
