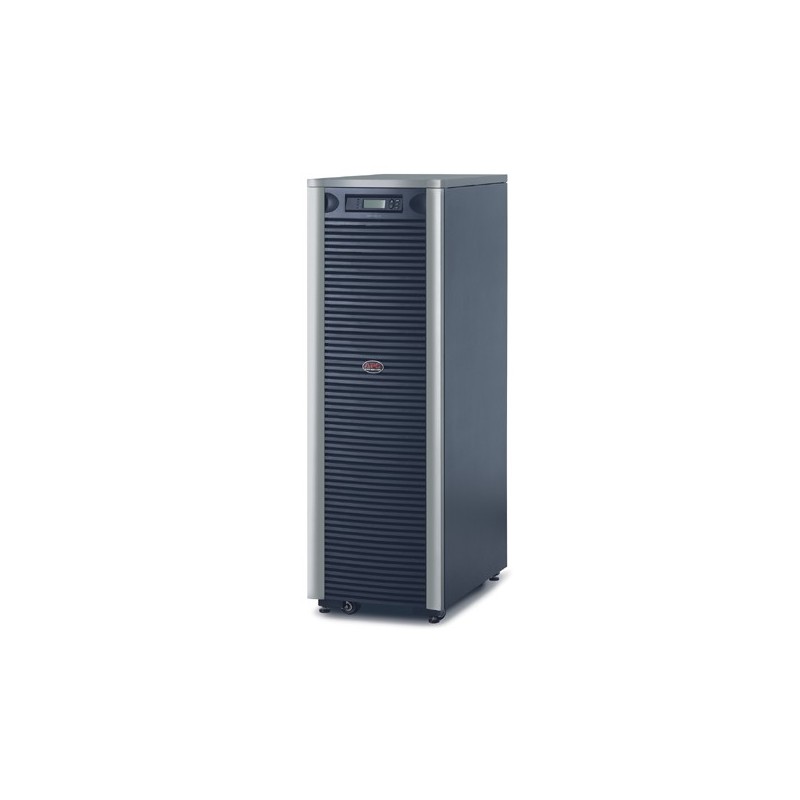

APC Symmetra LX, 12000VA/8400W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card
General Features:
Audible Alarms,
Automatic internal bypass,
Automatic restart of loads after UPS shutdown,
Automatic self-test,
Battery modules connected in parallel,
Cold-start capable,
Configurable for N+1 internal redundancy,
Disconnected battery notification,
Field-replaceable power distribution panel,
Frequency and voltage regulation,
Generator Compatible,
Hot-swappable batteries,
Hot-swappable intelligence modules,
Hot-swappable power modules,
InfraStruXure Manager Compatible,
Input Power Factor Correction,
Intelligent Battery Management,
LCD display,
Manageable external batteries,
Modular design,
Network manageable,
Plug-and-Play external batteries,
Power conditioning,
Power Modules connected in parallel,
Predictive failure notification,
Programmable Frequency,
Rack/Tower Convertible,
Redundant Intelligence Modules,
Removable input/output wiring tray,
Resettable circuit breakers,
Safety-agency approved,
Scalable Power Capacity,
Scalable runtime,
Shippable with modules installed,
SmartSlot,
User-replaceable batteries,
User-replaceable intelligence modules,
User-replaceable power modules.
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Colour of product | Black |
| Dimensions (WxDxH) | 480 x 730 x 940 mm |
| Emergency Power Off (EPO) | Yes |
| I/O ports | Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619 |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Interface | DB-9 RS-232, Smart-Slot |
| LED indicators | Multi-function LCD status and control console |
| Nominal input voltage | 230, 400 3PH |
| Nominal output voltage | 230 V |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Output power | 8400 W |
| Output power capacity (VA) | 12000 VA |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| Power supply input frequency | 45-65 Hz |
| Replacement battery cartridge | SYBT5 |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
| Storage temperature range (T-T) | -15 - 45 °C |
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.2 min |
| Weight | 264000 g |
| Output power capacity | 12000 VA |
