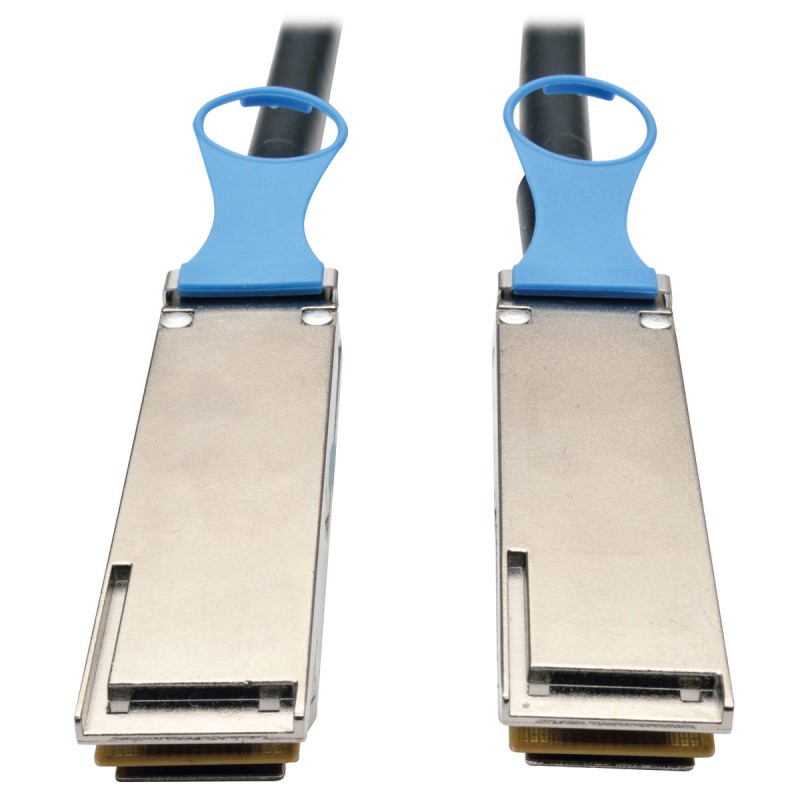

The N282-20N-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It’s ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets. This half-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position “board-as-connector” design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand. Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-20N-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It’s fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.



Connect Network Equipment at Speeds Up to 100 Gbps

● Combines four 28 Gbps SFP channels into single high-density cable

● Ideal for data centers, high-end servers and enterprise wiring closets

● Multi-platform support for 128G Fibre Channel and EDR InfiniBand

● Lower port cost and power budget when compared to fiber optics



Top-of-the-Line Construction

● 100 GbE 38-position “board-as-connector” design

● Zinc die-cast male QSFP+ connectors for superior EMI resistance

● Ergonomic pull-tab ejectors for quick, easy connections

● 8-pair wire technology optimized for bandwidth-intense applications

● Flexible 26 AWG conductors maintain smooth high-frequency response



Fully Compliant and Compatible

● Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards

● Complies with IEEE 802.3bj and RoHS

● Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture

● Compatible with all QSFP and QSRP+ ports



● Supports serial data rates up to 100 Gbps

● Complies with MSA SFF-8665 specifications

● Meets or exceeds 100GBASE-CR4 standards

● Multi-platform support for 128G Fibre Channel and EDR InfiniBand

● Pull-tab ejectors for quick, easy connections



System Requirements



● Networking switch or other hardware with open QSFP+ ports



Package Includes



● N282-20N-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 0.5 m (20 in.)
