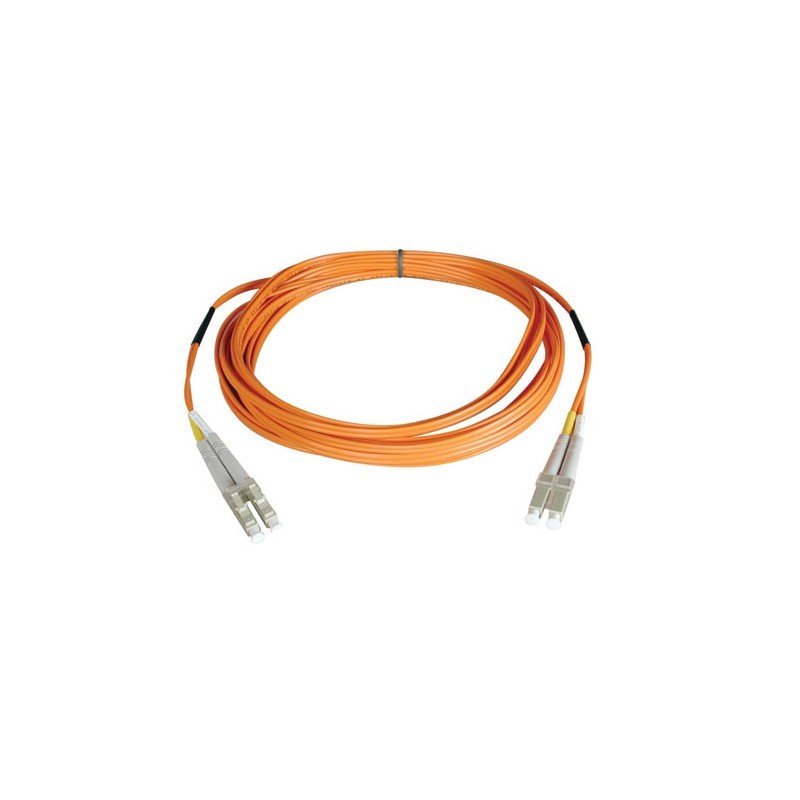

Tripp Lite's 1-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in lengths up to 152 meters. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-".



● Constructed with 50/125 micron cable

● Length: 1-meter

● Use on fiber and fibre channel installations

● LC male to LC male connectors

● Higher bandwidth optimized for gigabit and 10Gbps networks

● Backward compatible with 62.5 micron fiber

● Built-in headroom for future applications

● Number of fibers: 2

● Fiber type: All glass graded index

● Core diameter: Two 50+/-3 microns

● CLAD diameter: 125+/-2 microns

● Primary coating diameter: 245+/-15 microns

● Primary coating material: Acrylate

● Secondary coating diameter: 900+/-50 microns

● Secondary coating material: PVC

● Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum

● Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum

● Numerical aperture: .275 nominal

● Proof test level: 100,000 PSI

● Insertion loss testing performed on every connector (0.2db typical) and provided with cable

● Beveled edge on ends of glass makes insertion of plug a breeze



● Premium PVC multimode patch cables

● Attenuation loss meets or exceeds the latest industry standards

● Higher bandwidth optimized for gigabit and 10Gbps networks

● Backward compatible with 62.5 micron fiber

● Built-in headroom for future applications



System Requirements



● Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors



Package Includes



● 1M duplex MMF cable LC/LC 50/125 fiber
