MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6-ft.)

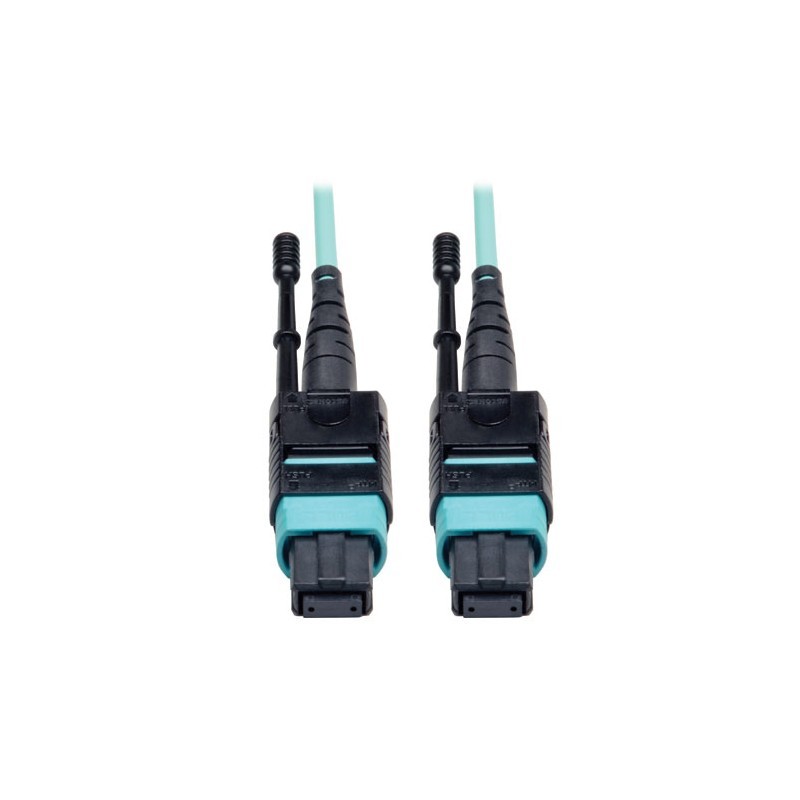

Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms and data centers. They feature Push/Pull tab connectors that offer maximum accessibility in high density installations; install / remove with one hand. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.



● MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections

● Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand

● 12 times the density of SC style connectors

● High Density design cuts down on installation costs

● 50/125 OM3 Rated Multimode Fiber, 850nm

● Plenum rated jacket

● Unique cable ID label for Quality Control and Traceability

● Each cable 100% tested for low insertion loss and back reflection

● Test data supplied with each cable

● Custom lengths available



● Hi-density MTP/MPO 12-fiber connectors for reduced cabling

● Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand

● OM3 rated 50/125 Multimode

● Supports to 40GbE speeds



Package Includes



● 2 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum
Cable length1.83 m
Cable typeOM3
Cladding diameter125 µm
Colour of productBlack, Turquoise
Connector 1MTP
Core diameter50 µm
Data transfer rate40 Gbit/s
Fiber mode structureMulti-mode
GenderMale/Male
RoHS complianceYes
Wavelength850 nm

Similar products

  • Tripp Lite Duplex Multimode 62.5/125 Fiber Adapter (LC-SC M/F) 0.3M (1-ft.)
    Tripp Lite Duplex Multimode 62.5/125 Fiber...
  • Tripp Lite 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (Mini-LC / LC) - Aqua, 1M
    Tripp Lite 10Gb Duplex Multimode 50/125...
  • Tripp Lite 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (Mini-LC / LC) - Aqua, 2M
    Tripp Lite 10Gb Duplex Multimode 50/125...
  • Tripp Lite 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (Mini-LC / LC) - Aqua, 10M
    Tripp Lite 10Gb Duplex Multimode 50/125...

Tripp Lite MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6-ft.)

MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6-ft.)

N844-02M-12-P

Out of Stock

£159.09
£132.58 Ex VAT.
