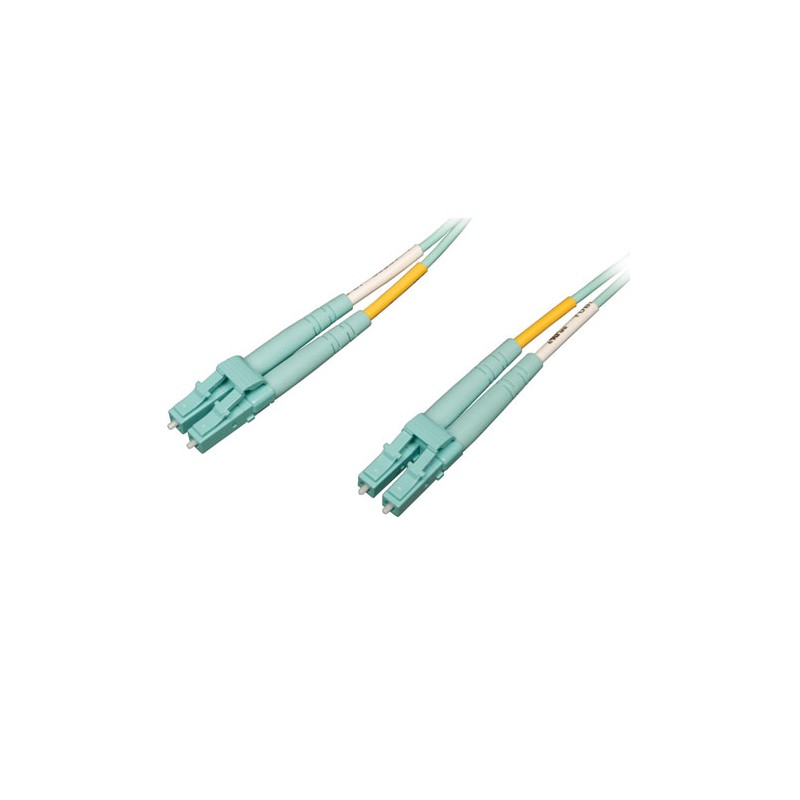

The N820-15M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm). For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable provides ten times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable. Backward compatible with existing 50/125 fiber, the aqua-colored N820-15M-OM4 is manufactured using top-quality materials. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. It has 50/125 duplex (zipcord) fiber made from glass and a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It’s commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards.



- 40/100 Gb Ethernet speed up to 300 m (@ 850 nm)

- Nearly 10x the bandwidth of conventional 62.5 um multimode fiber

- 50/125 duplex glass fiber construction

- Low-smoke zero-halogen aqua jacket

- Dual male LC connectors meet insertion loss standards

- Allows 40/100 Gb serial transmission up to 300 m (@ 850 nm)

- Provides 10x more bandwidth than conventional 62.5 µm multimode fiber

- Backward compatible with existing 50/125 fiber

- Meets current IEEE 802.3ae and TIA LOMMF standards

- Ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers

- Commonly used with VCSEL and LED laser light sources

- 50/125 duplex glass fiber construction

- Low-smoke zero-halogen jacket

- Sturdy dual LC male connectors meet insertion loss standards

- Aqua-colored for identification as a 10 Gb cable
