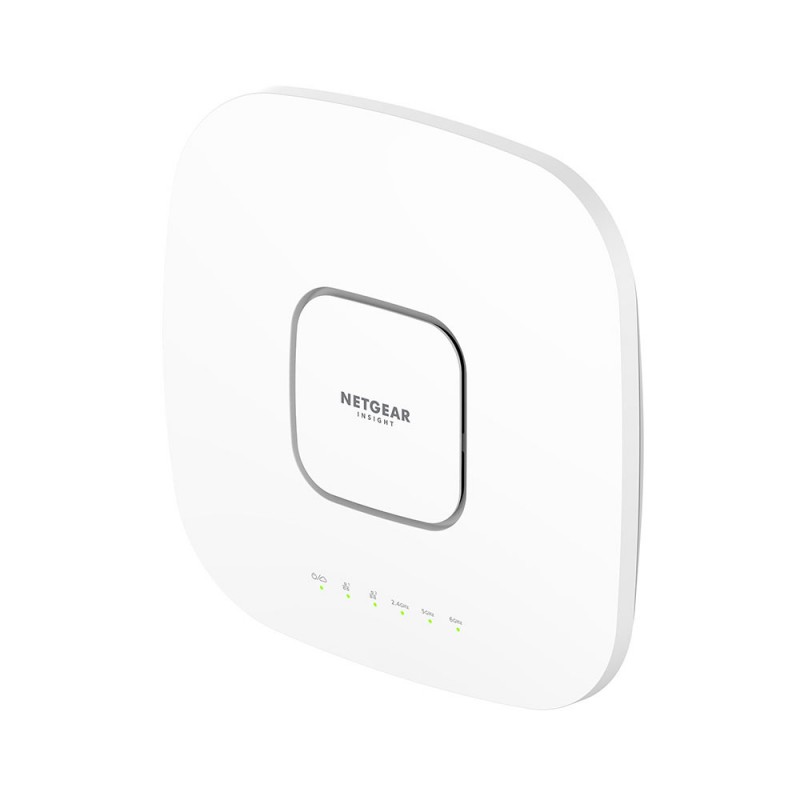

NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point
First Tri-Band WiFi 6E access point, WAX630E is the most powerful SMB access point in the industry. With WiFi 6E, a new 6Ghz band added to WiFi 6 making it the fastest WiFi available. Offers the features and capabilities of WiFi 6 access points, including higher performance, lower latency, and faster data rates, and extends into the new 6 GHz band for expanded spectrum capacity.Wifi 6e, The Fastest Wifi Ever WAX630E adds a new 6GHz band for new high-performance WiFi 6E devices like laptops and smartphones, reducing data loads on the other two bands so WiFi speed increases for every device connected to the access point.Netgear Insight Remote Management Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. Includes 1-year subscription. Maximize Performance WITH A NETGEAR POE++ SWITCH 2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch
Antenna gain level (max)4.4 dBi
Antenna typeinternal
Auto MDI/MDI-XY
DC-in jackY
Depth268.3 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Height55.5 mm
MAC address filteringY
Maximum data transfer rate7800 Mbit/s
ModulationOFDM
Mounting kitY
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Number of products included1 pc(s)
Operating temperature (T-T)0 - 40 °C
Output current3.5 A
Output voltage12 V
PlacementCeiling,Wall
Power over Ethernet (PoE)Yes
Quick start guideY
Reset buttonY
Security algorithmsEAP-TLS,PEAP,SSL/TLS,TTLS,WPA,WPA2,WPA3
Spread spectrum methodOFDM,OFDMA
VLAN supportY
Web-based managementY
Weight1050 g
Width266.6 mm
2.4 GHzY
5 GHzY
Wi-Fi Multimedia (WMM)/(WME)Y
Auto Wireless Distribution System (WDS)Y
MIMOY
MIMO typeMulti User MIMO
Product colourWhite
Service Set Identifier (SSID) featuresSSID broadcast,SSID broadcast on/off
Maximum data transfer rate (2.4 GHz)600 Mbit/s
Maximum data transfer rate (5 GHz)4800 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)Y

wax630e-100eus.pdf

NETGEAR AXE7800 Tri-Band WiFi 6E Access Point Data Sheet

Download (1.86M)

Similar products

  • Netgear WA510
    Netgear WA510
  • Netgear WAX610
    Netgear WAX610
  • Netgear WAX610Y
    Netgear WAX610Y
  • Netgear WiFi 6 Orbi
    Netgear WiFi 6 Orbi
  • Netgear WAX620
    Netgear WAX620

NETGEAR AXE7800 Tri-Band WiFi 6E Access Point

WiFi 6E, 2.4GHz, 5GHz, 6GHz, 1 x 1GbE LAN port, 8 SSID, WPA3, Ultra60 PoE++, 1050 g

WAX630E-100EUS

In Stock

£415.14
£345.95 Ex VAT.
