Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
  • Netgear WAX630
Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for small and medium sized business.REMOTE CLOUD MANAGEMENT Plug-and-play set up and remote management of small business networksNETWORK TOPOLOGY A single, holistic view of wired and wireless networks for further troubleshootingHIGH-DENSITY WIFI MANAGEMENT Deep wireless management features with more tools to deploy small and large WiFi networksBusiness-Level Security WPA3 for the highest level of WiFi connection security8 Wireless Networks (SSIDs) Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageabilitySeparate VLANs Keep admin, employee, visitor, HR, Finance department networks safely separated from each other NETGEAR INSIGHT FOR VARS Multi-location & multi-tenant remote network management from a single pane-of-glassEasy Setup Set up, configure, and manage with NETGEAR InsightRemote Management Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription includedFlexible Mounting Easy to securely install on the wall of a suspended ceiling with the hardware included
Antenna gain level (max)4.3 dBi
Antenna typeinternal
Auto MDI/MDI-XY
DC-in jackY
Depth268.29 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates100,1000,2500 Mbit/s
Height55.5 mm
LED indicatorsY
MAC address filteringY
Maximum data transfer rate6000 Mbit/s
ModulationOFDM
Mounting kitY
Networking standardsIEEE 802.11ax,IEEE 802.11i,IEEE 802.3af,IEEE 802.3at
Number of products included1 pc(s)
Number of users200 user(s)
Operating temperature (T-T)0 - 40 °C
Output current3.5 A
Output voltage12 V
PlacementCeiling,Wall
Power over Ethernet (PoE)Yes
Quick start guideY
Reset buttonY
Security algorithmsEAP-TLS,PEAP,SSL/TLS,TTLS,WPA,WPA2,WPA3
Spread spectrum methodOFDM,OFDMA
VLAN supportY
Web-based managementY
Weight956 g
Width266.61 mm
2.4 GHzY
5 GHzY
Wi-Fi Multimedia (WMM)/(WME)Y
Auto Wireless Distribution System (WDS)Y
MIMOY
MIMO typeMulti User MIMO
Product colourWhite
Service Set Identifier (SSID) featuresSSID broadcast,SSID broadcast on/off
Maximum data transfer rate (2.4 GHz)1200 Mbit/s
Maximum data transfer rate (5 GHz)2400 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)Y

wax630-100eus.pdf

Netgear WAX630 Data Sheet

Download (1.51M)

You might also like

  • External Cat6 UTP LDPE RJ45 Patch Leads
    External Cat6 UTP LDPE RJ45 Patch Leads
  • Netgear GS308EPP
    Netgear GS308EPP

Similar products

  • Netgear WA510
    Netgear WA510
  • Netgear WAX610
    Netgear WAX610
  • Netgear WAX610Y
    Netgear WAX610Y
  • Netgear WiFi 6 Orbi
    Netgear WiFi 6 Orbi
  • Netgear WAX620
    Netgear WAX620

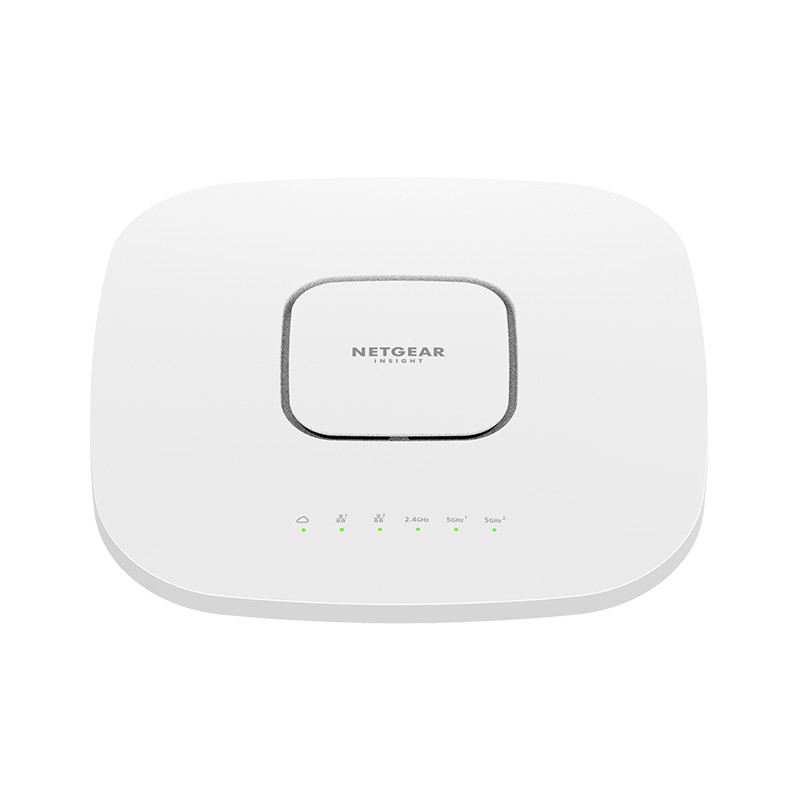

Netgear WAX630

AX6000 Tri-Band PoE Multi-Gig WiFi 6 Access Point

WAX630-100EUS

Out of Stock

£355.35
£296.12 Ex VAT.
