Antenna gain level (max) | 4.3 dBi |
Antenna type | internal |
Auto MDI/MDI-X | Y |
DC-in jack | Y |
Depth | 205.7 mm |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 100,1000,2500 Mbit/s |
Height | 34.3 mm |
LED indicators | Y |
MAC address filtering | Y |
Maximum data transfer rate | 3600 Mbit/s |
Modulation | OFDM |
Mounting kit | Y |
Networking standards | IEEE 802.11ax,IEEE 802.11i,IEEE 802.3af,IEEE 802.3at |
Number of products included | 1 pc(s) |
Operating temperature (T-T) | 0 - 40 °C |
Output current | 2.5 A |
Output voltage | 12 V |
Placement | Ceiling,Wall |
Power over Ethernet (PoE) | Yes |
Quick start guide | Y |
Security algorithms | EAP-TLS,PEAP,SSL/TLS,TTLS,WPA,WPA2,WPA3 |
VLAN support | Y |
Web-based management | Y |
Weight | 783 g |
Width | 205.7 mm |
2.4 GHz | Y |
5 GHz | Y |
Wi-Fi Multimedia (WMM)/(WME) | Y |
Auto Wireless Distribution System (WDS) | Y |
MIMO | Y |
MIMO type | Multi User MIMO |
Product colour | White |
Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
Maximum data transfer rate (5 GHz) | 2400 Mbit/s |

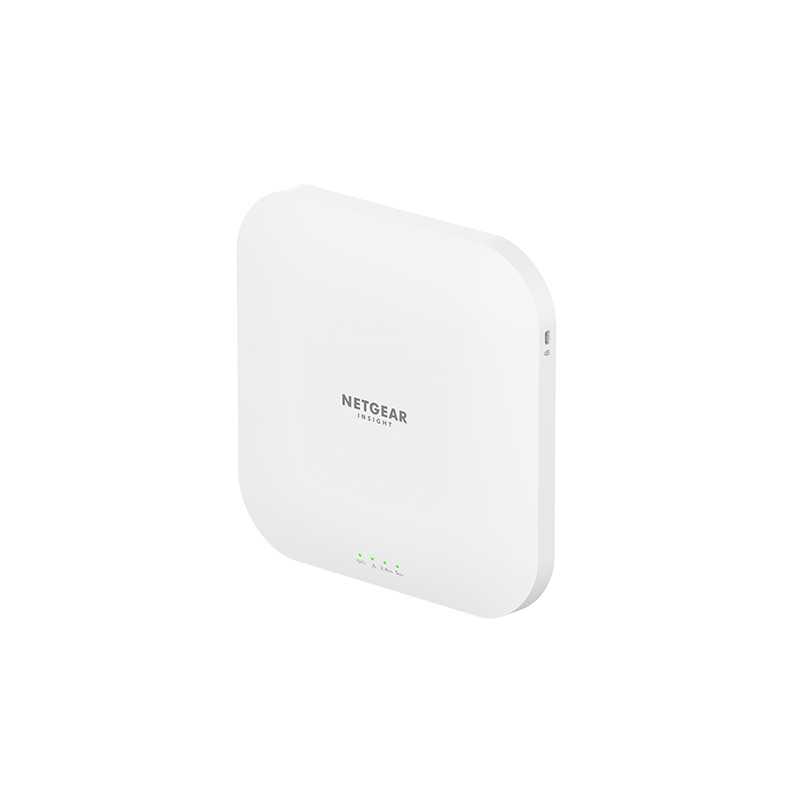

3.6 Gb/s, 2.4/5 GHz, 2.5G LAN, IEEE 802.11ax, 12 VDC, 2.5A, 205.7x205.7x34.3 mm
WAX620-100EUS
In Stock
